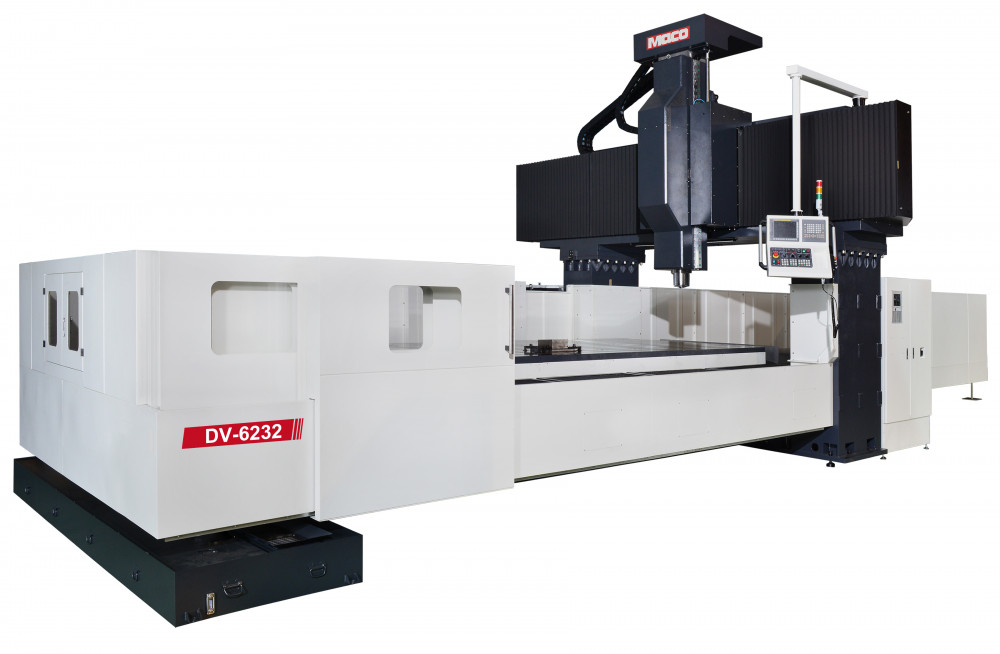

DV-6232
Controller Units
FANUC 0iMF PLUS
X,Y,Z Travel
6,200 / 3,200 / 1,000 mm
Table Size
6,200 x 2,400 mm

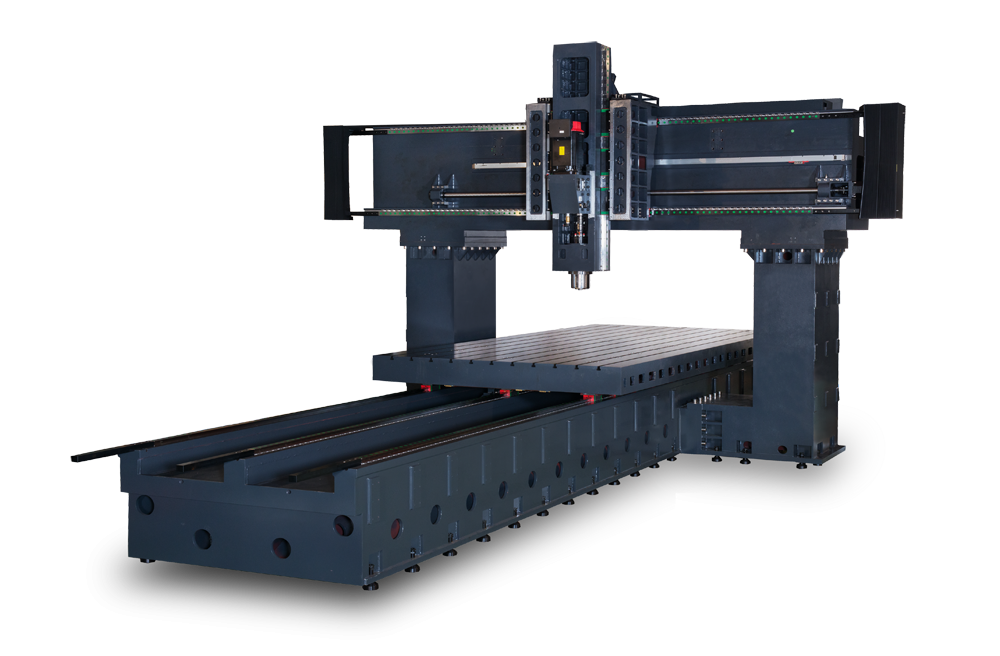

The integrally-formed base adopts a strong rib design to efficiently reduces machining vibrations and increases the cutting stability of the equipment.

The box-type structural design with high-density ribs strengthening design to perform excellent machine body rigidity.

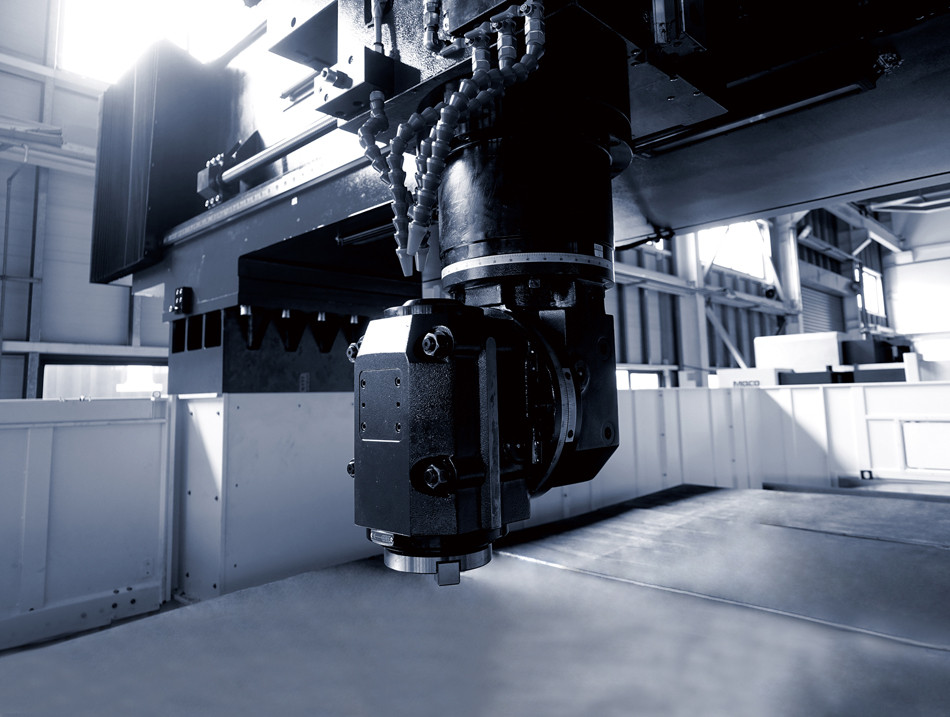

The spindle is consistent with the center of the linear guideway to get the best structural rigidity and precision.






All DV Series use a standard two-section gear head. Z-axis is adopted with dual oil cylinder counter-balance to eliminate commutation delay phenomenon caused by traditional mechanical hydraulic design. Z-axis acceleration is up to 0.5G to prevent Z-axis from dropping down due to external power off, providing the most stable performance of mold machining.







For over twenty years of tool magazine producer, it is equipped with MACO self-produced automatic tool changer for quality assurance.

The unique aluminum tool pocket design extends the life of the tool magazine. The advanced cam drive mechanism with the free-selection function of the tool is unique in the industry.





The table is fully travel-supported, with no hanging weight problem. High rigidity and lightweight worktable structure design to ensure high acceleration and deceleration cutting performance when the worktable is loaded.






DV 20 / 24 / 28 / 32 Series adopts 3axis roller type linear guideways to ensure machine precision and high performance. Suitable for mold machining, this Series reduces cutting issues that arose from long arbors usage. Y-axis slideway is designed with maximum span: Upper slideway is placed above the beam to make sure the maximum slideway supporting rigidity.

Product Name
Unit
DV-6232
TRAVEL
X-Axis Travel
mm
6,200
Y-Axis Travel
mm
3,200
Z-Axis Travel
mm
1,000
Spindle Center to Table Face
mm
1,047
Spindle Nose to Table Center
mm
200~1,200
Distance of Column
mm
3,250
SPINDLE
Spindle Speed
rpm
6,000
Spindle Transmission
Gear Type
Spindle Taper
BT-50
Spindle Power
kw
22 / 26
FEEDRATE
Cutting Feedrate
mm/min
5,000
X/Y/Z Rapid Feedrate
m/min
10 / 12 / 10
TABLE
Table Size
mm
6,200 x 2,400
T-slot ( W x No.x Pitch)
mm
22 x 11 x 200
Table Loading Capacity
kg
24,000
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
Max.Tool Length
mm
350
Max. Tool Weight
kg
18
Max. Tool Diameter
mm
125 / 200
ATC Changing Time
sec
3.0
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
15,410 x 6,230 x 5.220
Machine Weight
kg
68,000
Power Requirement
KVA
50
Air Pressure
kg/cm²
7
