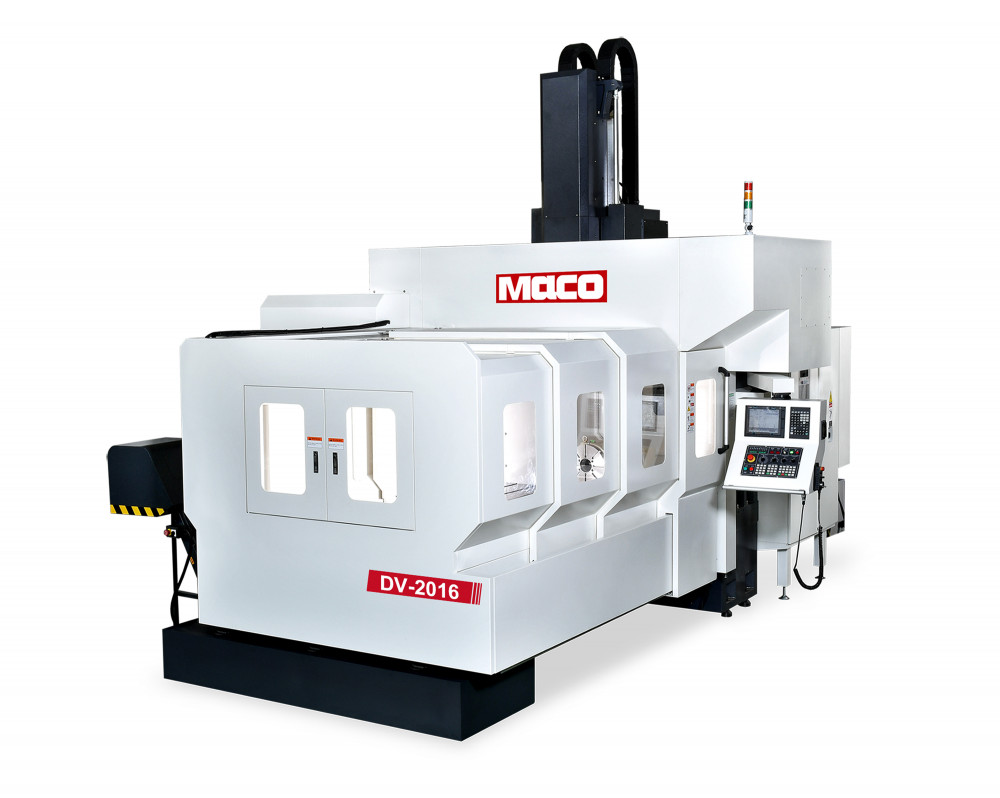

DV-2016
Controller Units
FANUC 0iMF PLUS
X,Y,Z Travel
2,100 / 1,600 / 800 mm
Table Size
2,000 x 1,400 mm






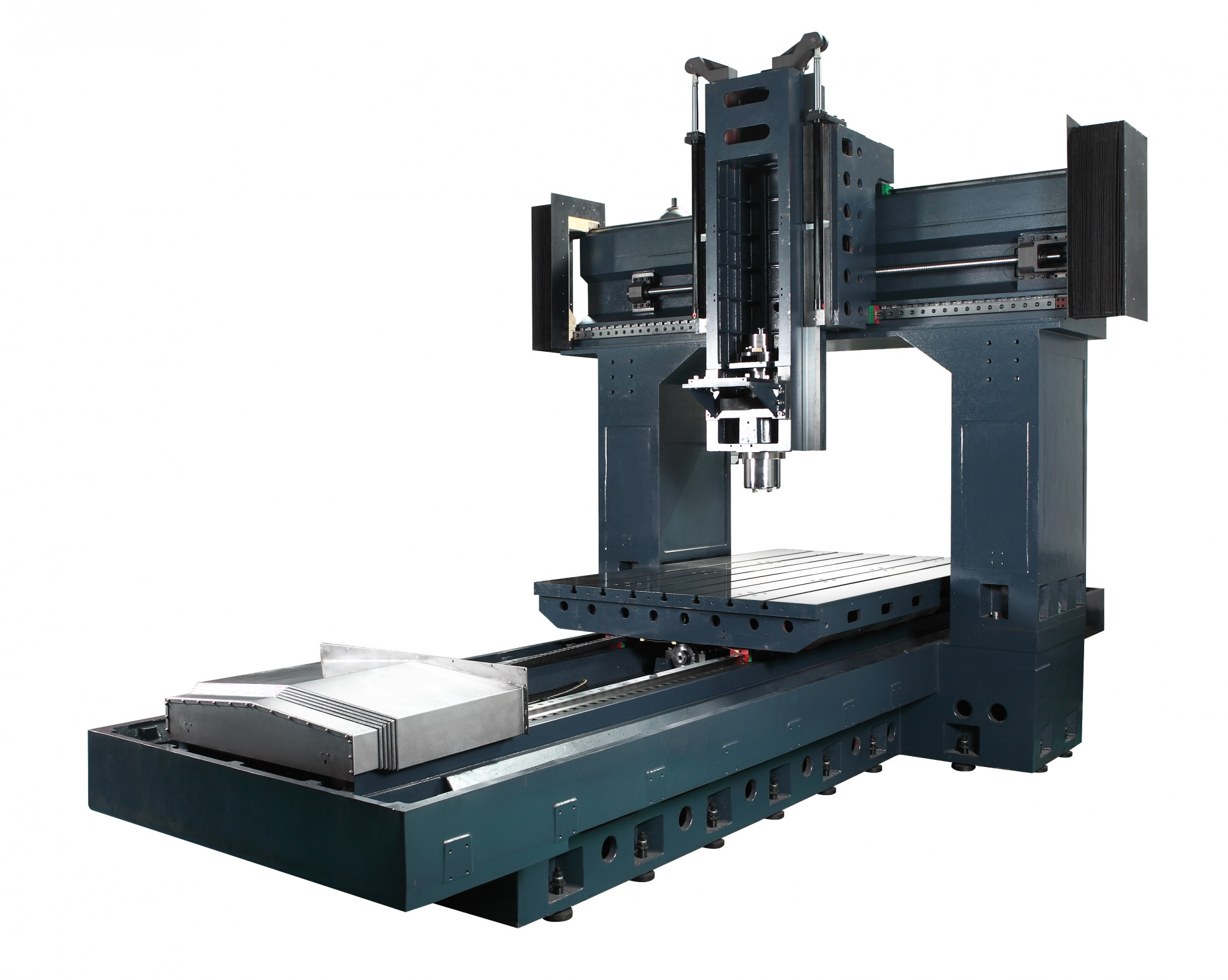

DV 13 / 16 Series focus on heavy cutting performance: The beam is molded in integrally-formed box type with high rigidity.

The integrally-formed base adopts a strong rib design to efficiently reduces machining vibrations and increases the cutting stability of the equipment.

The box-type structural design with high-density ribs strengthening design to perform excellent machine body rigidity.

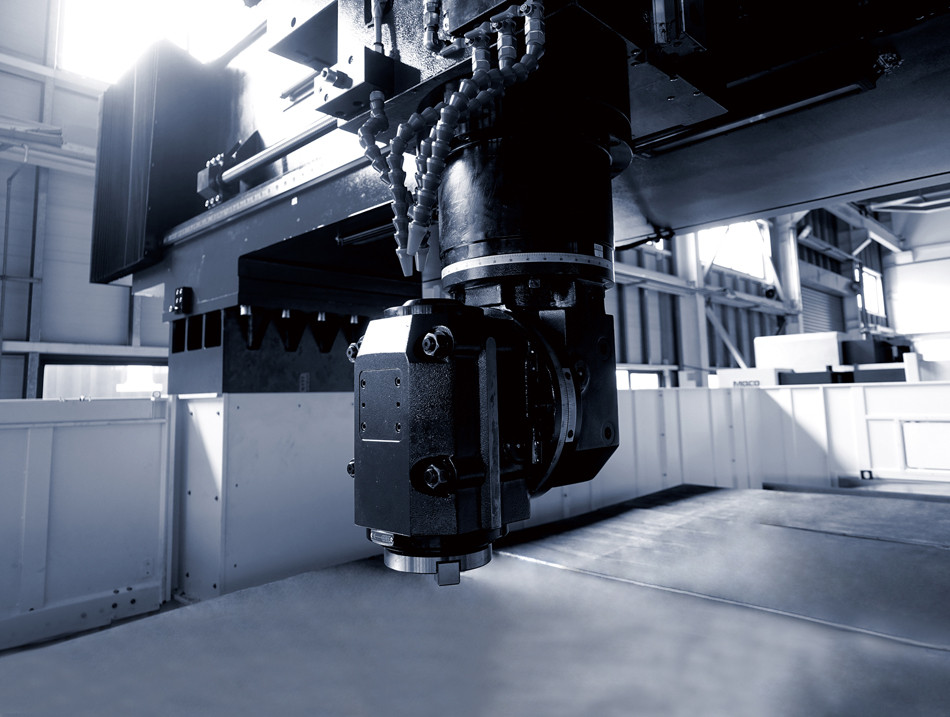

The spindle is consistent with the center of the linear guideway to get the best structural rigidity and precision.






DV全系列使用標準兩段式齒輪頭設計,Z軸採用雙油壓配重,油氣分離式蓄壓配重裝置,無傳統機械式油壓換向延遲現象,Z軸可達0.5G之加速性能,外部斷電Z軸不下滑裝置,提供模具加工最穩定之性能。





For over twenty years of tool magazine producer, the MX series is equipped with MACO self-produced automatic tool changer for quality assurance.

The unique aluminum tool pocket design extends the life of the tool magazine. The advanced cam drive mechanism with the free-selection function of the tool is unique in the industry.






工作台全行程支撐,無懸重問題。
高剛性和輕巧的結構設計,確保在裝載工作台時具有較高的加減速切削性能。






X, Y axes are equipped with extra heavy-loading roller type linear guideways with low friction and high rigidity, and Z-axis is adopted with high-rigidity box way. Therefore, an optimal dynamic accuracy can be ensured.

Product Name
Unit
DV-2016
TRAVEL
X-Axis Travel
mm
2,100
Y-Axis Travel
mm
1,600
Z-Axis Travel
mm
800
Spindle Center to Table Face
mm
950
Spindle Nose to Table Center
mm
150~950
Distance of Column
mm
1,600
SPINDLE
Spindle Speed
rpm
6,000
Spindle Transmission
Gear Type
Spindle Taper
BT-50
Spindle Power
kw
18.5 / 22
FEEDRATE
Cutting Feedrate
mm/min
7,000
X/Y/Z Rapid Feedrate
m/min
20 / 20 / 15
TABLE
Table Size
mm
2,000 x 1,400
T-slot ( W x No.x Pitch)
mm
22 x 7 x 200
Table Loading Capacity
kg
4,000
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
Max.Tool Length
mm
350
Max. Tool Weight
kg
18
Max. Tool Diameter
mm
116 / 200
ATC Changing Time
sec
3.0
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
5,900 x 4,700 x 4,450
Machine Weight
kg
18,500
Power Requirement
KVA
40
Air Pressure
kg/cm²
7
