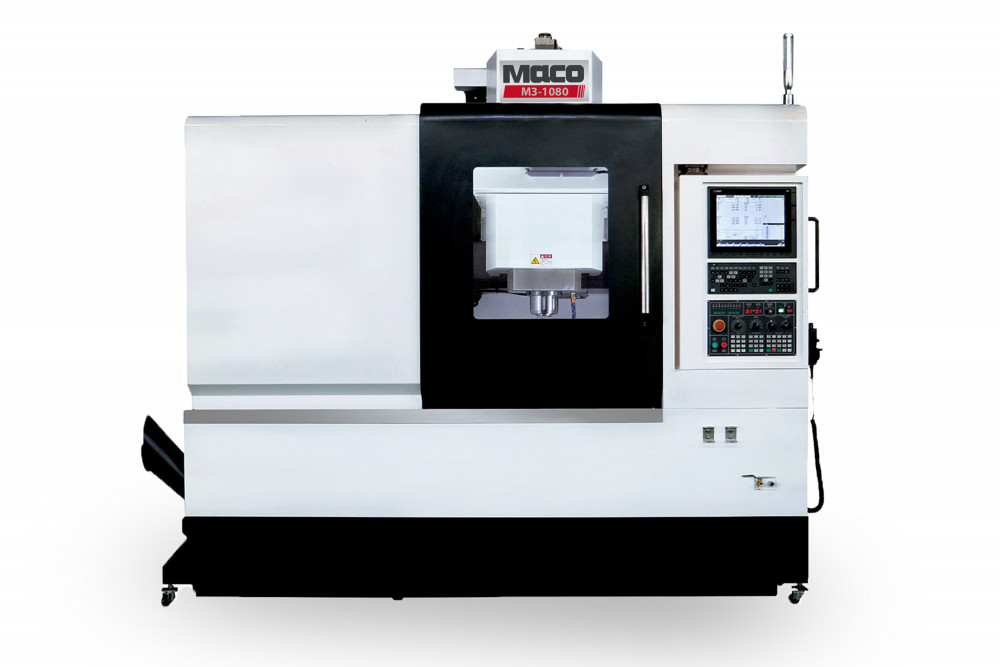

M3-1080
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X.Y.Z Travel
1,050 / 800 / 500 mm
Table Size
1,100 x 800 mm

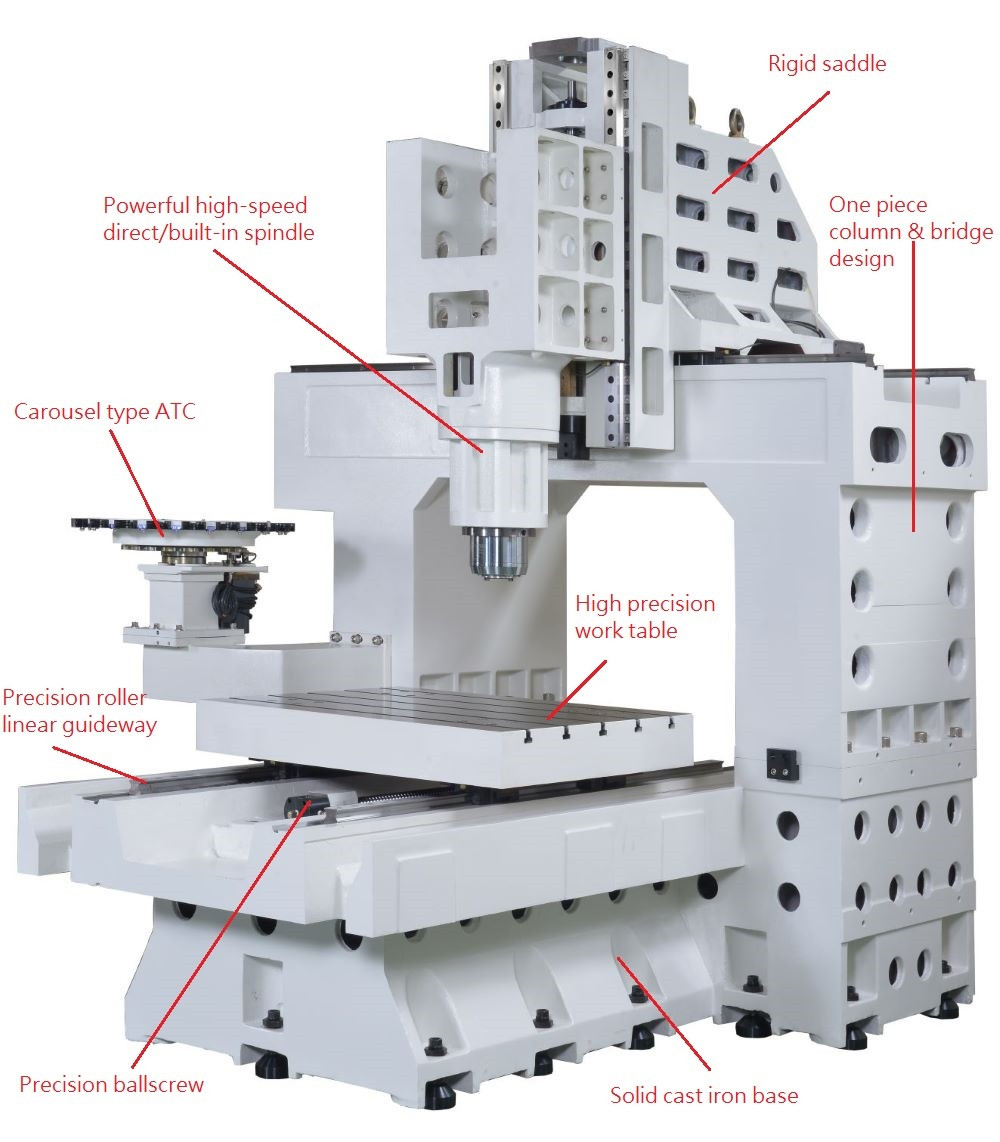

The main mechanical structures are made of Meehanite casting iron with the process of heat treatment to release the residual stress to ensure every actual miniature movement and to maintain a long-lasting accuracy.

The XYZ ballscrews have been pre-stretched. It effectively refrains from the thermal deformation and assures precise positioning accuracy and repeatability accuracy.

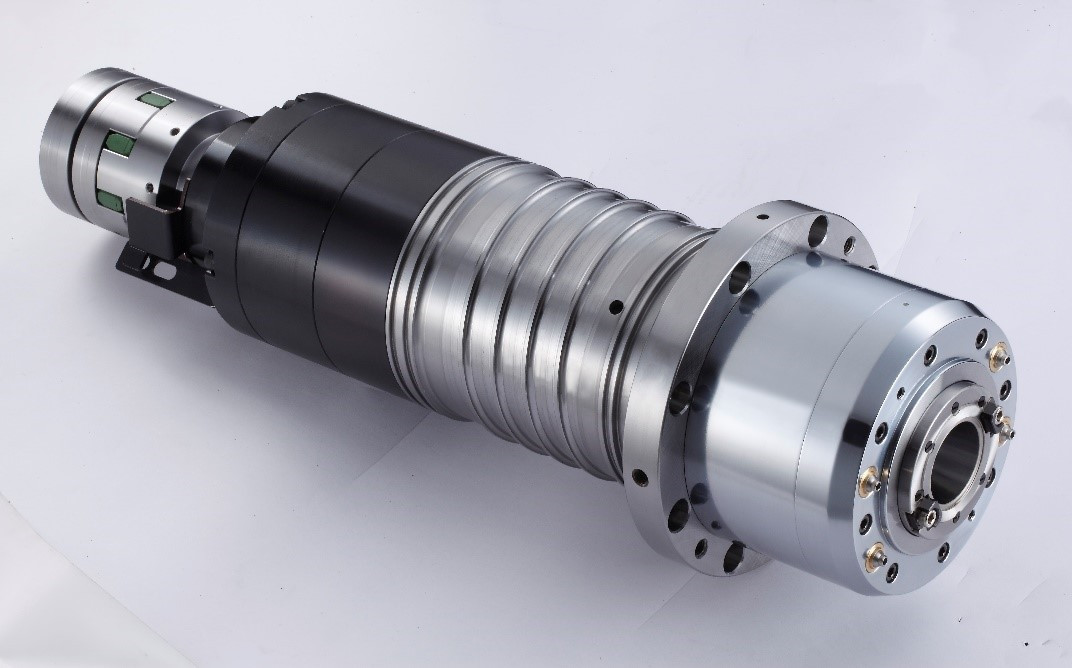

The M3 comes with a standard 15000rpm high precision and high stability Direct Driven spindle system. The built-in type high-speed spindle is available as an option.

The M3 spindle cooling system will ensure the temperature stability during spindle operation and restrains from the thermal deformation on the spindle to optimize the machining accuracy.






For over twenty years of tool magazine producer, the MX series is equipped with MACO self-produced automatic tool changer for quality assurance.

The unique aluminum tool pocket design extends the life of the tool magazine. The advanced cam drive mechanism with the free-selection function of the tool is unique in the industry.






The pathway of the specialized return unit, as well as the ballnut’s strengthened design diminish the impact experienced by the balls. It can sustain peak performance in more rigorous operating environment with acceleration and deceleration
.






The roller type linear guideway offers rigidity and accuracy of the linear feed system in all axes. It provides superior lubrication, quieter operation, and longer running life. It is broadly use by the machine tool industry. The roller type linear guideway also offers high-speed, low noise, and reduced the dust generated during movement of the slides.

Product Name
Unit
M3-1080
TRAVEL
X-Axis Travel
mm
1,050
Y-Axis Travel
mm
800
Z-Axis Travel
mm
500
Spindle Center to Table Face
mm
870
Spindle Nose to Table Center
mm
130
Distance of Column
mm
1,210
SPINDLE
Spindle Speed
rpm
15,000
Spindle Transmission
Direct Drive
Spindle Taper
BBT40
Spindle Power
kw
7.5 / 11
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
30 / 30 / 30
TABLE
Table Size
mm
1,100 x 800
T-slot ( W x No.x Pitch)
mm
18 x 5 x 150
Table Loading Capacity
kg
800
ATC
Type of ATC
Arm Type
Number of tools
pcs
20
Max.Tool Length
mm
250
Max. Tool Weight
kg
6
Max. Tool Diameter
mm
80 / 150
ATC Changing Time
sec
6.0
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
2,967 x 3,190 x 2,998
Machine Weight
kg
10,500
Power Requirement
KVA
30
Air Pressure
kg/cm²
6
