MH-800A by MACO
MH-800A by MACO
MH-800A
Controller Units
FANUC 0iMF PLUS
X,Y, Z Travel
1,200 x 1,000 x 1,000 mm
Table Size
800 x 800 mm

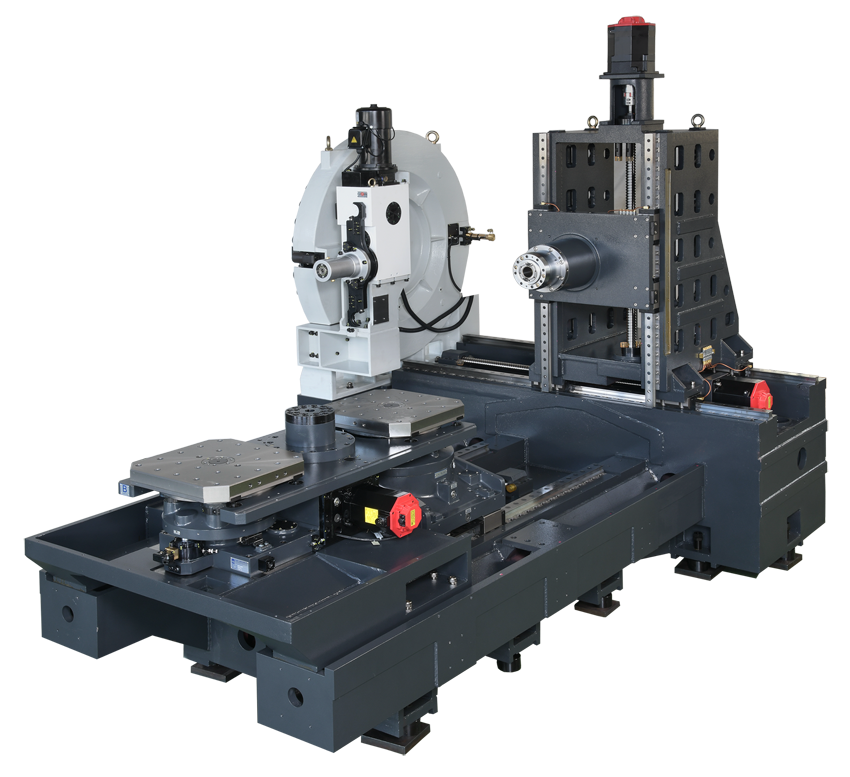

1. The column is designed with a symmetrical double-wall structure, in order to prevent from temperature growth which would cause of generating the thermal deformation and affecting the cutting accuracy.

2. Adopting the high-intensive base not only prevent the vibration but raise the cutting stability.

3. The magazine install in the above that has less interference region, and the short tool arm has rapid tool change rate.

4. The machine with compact construction, which has minimum using space that increase the square feet of factory.

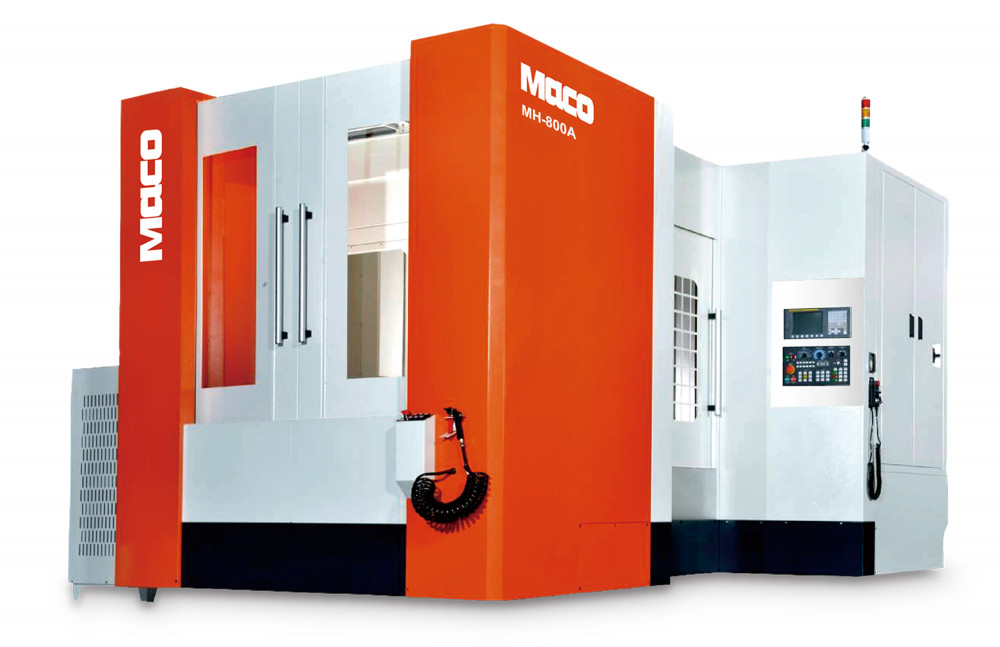

MACO CNC MH-800A

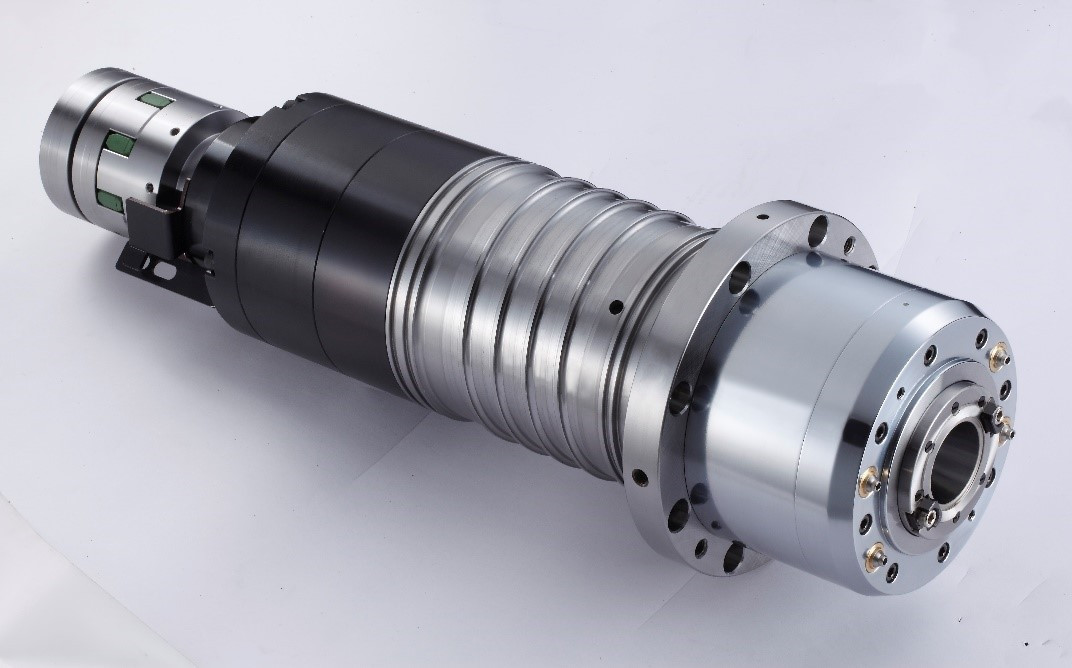

The spindle with short nose design to exhibit exceptional rigidity. The spindle head is designed by Finite Element Analysis to achieve an optimal structure with increased length of locking surface, making it easily for deep holes processing.
MACO CNC Spindle

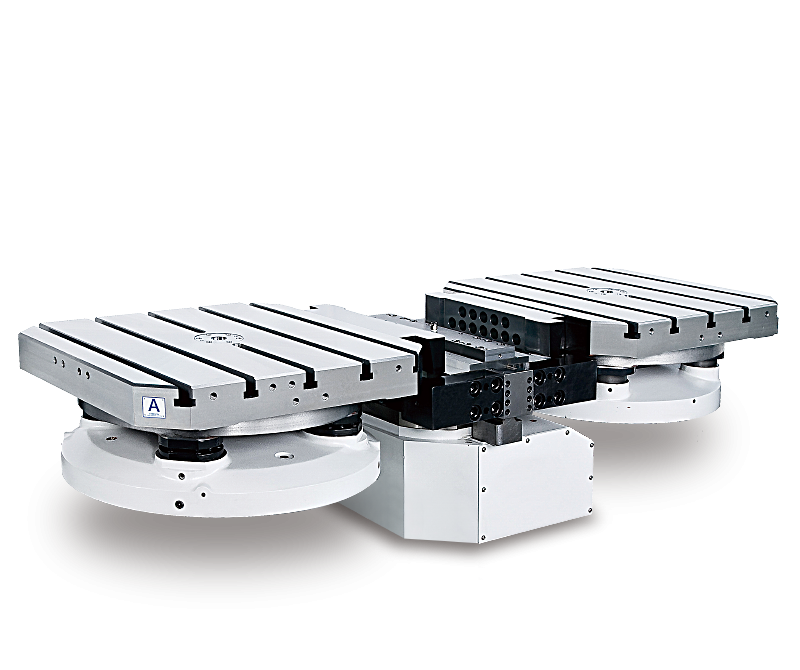

The rotary table is driven by a servo system with the three-piece clutch ±5 accuracy to ensure positioning accuracy.
MACO CNC Rotary

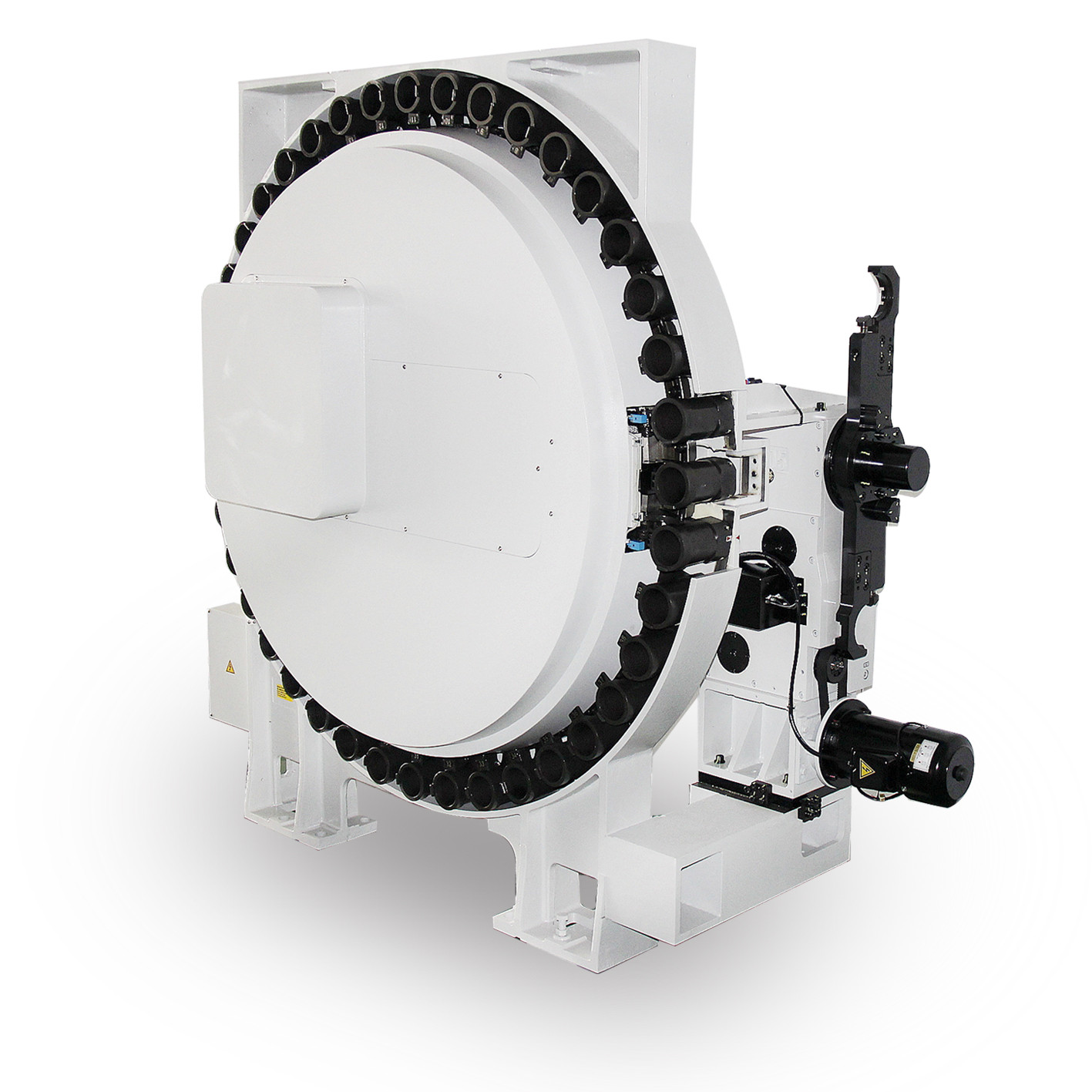

Adopted 40 tools ATC which features fast, simple, reliable and long-life.

MACO CNC Tool Magazine






Selected large diameter (Ø 50mm) ball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the affect of the thermal expansion to maintain the accuracy of operation.

HIWIN Ball Screw






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.

HIWIN MH-800A Linear Guideway
Product Name
Unit
MH-800A
TRAVEL
X-Axis Travel
mm
1,200
Y-Axis Travel
mm
1,000
Z-Axis Travel
mm
1,000
Spindle Center to Table Face
mm
150~1,150
Spindle Nose to Table Center
mm
150
SPINDLE
Spindle Speed
rpm
6,000
Spindle Transmission
Gear Type
Spindle Taper
BT-50
Spindle Power
kw
22 / 26
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
36 / 36/ 36
TABLE
Table Size
mm
800 x 800
T-slot ( W x No.x Pitch)
mm
Table Screw
mm
24-M16 x 2P
Table Loading Capacity
kg
2,000
Table Indexing
0.001°
Max. Workpiece Dimensions
mm
1,100 x 1,000
Height from Table Surface to Ground
mm
1,210
APC Time
sec
ATC
Type of ATC
Arm Type
Number of tools
pcs
40
Max.Tool Length
mm
500
Max. Tool Weight
kg
25
Max. Tool Diameter
mm
110 / 220
ATC Changing Time
sec
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
5,580 x 4,580 x 3,390
Machine Weight
kg
17,800
Power Requirement
KVA
55
Air Pressure
kg/cm²
6
