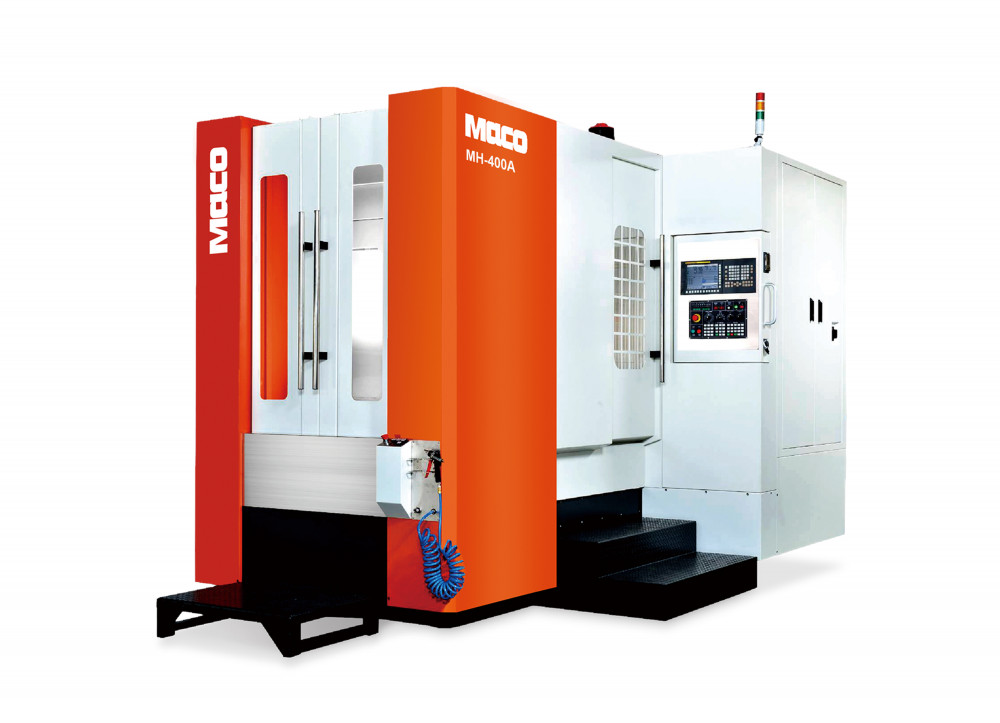

MH-400A
Controller Units
FANUC 0iMF PLUS
X,Y, Z Travel
650 / 500 / 500 mm
Table Size
400 x 400 mm

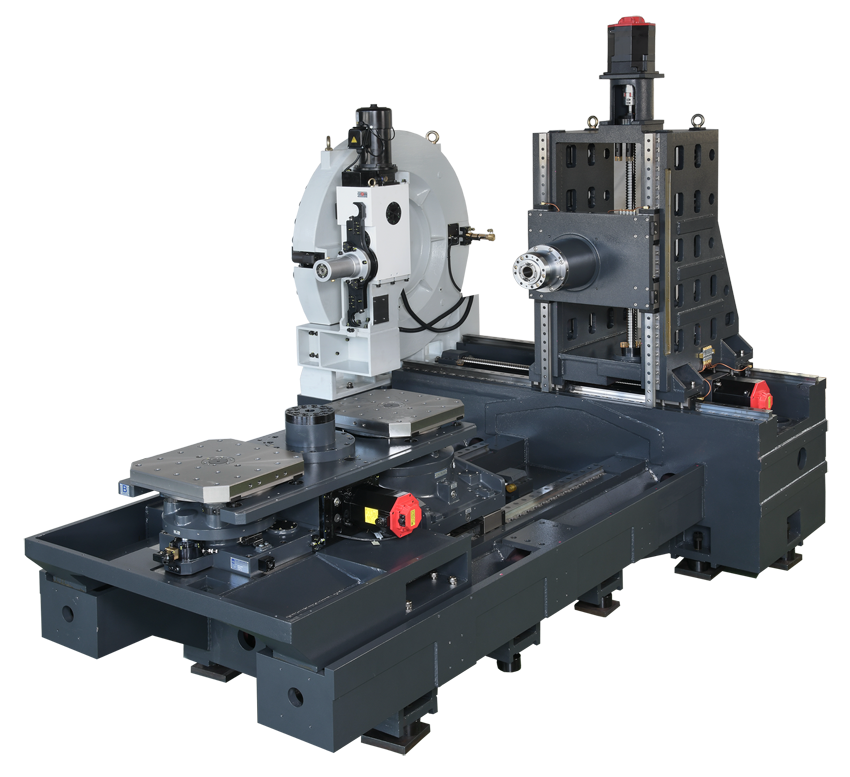

1. The column is designed with a symmetrical double-wall structure, in order to prevent from temperature growth which would cause of generating the thermal deformation and affecting the cutting accuracy.

2. Adopting the high-intensive base not only prevent the vibration but raise the cutting stability.

3. The magazine install in the above that has less interference region, and the short tool arm has rapid tool change rate.

4. The machine with compact construction, which has minimum using space that increase the square feet of factory.

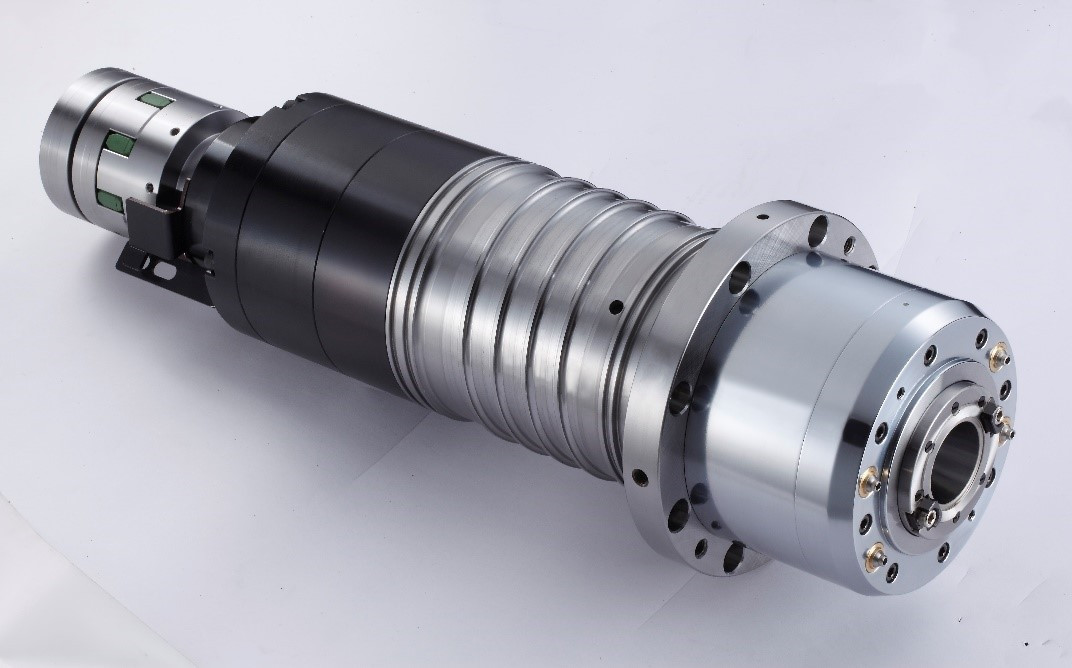

The spindle with short nose design to exhibit exceptional rigidity. The spindle head is designed by Finite Element Analysis to achieve an optimal structure with increased length of locking surface, making it easily for deep holes processing.

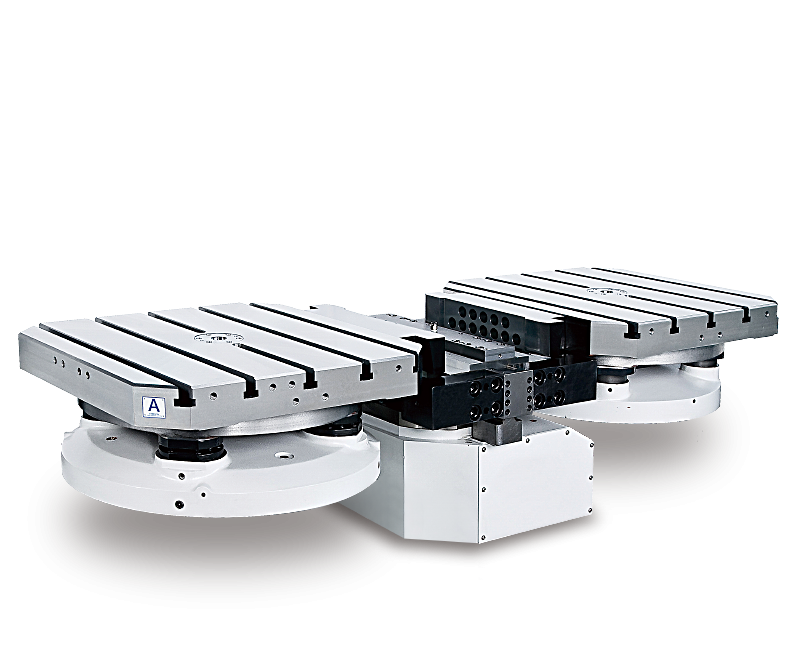

The rotary table is driven by a servo system with the three-piece clutch
±5 accuracy to ensure positioning accuracy.

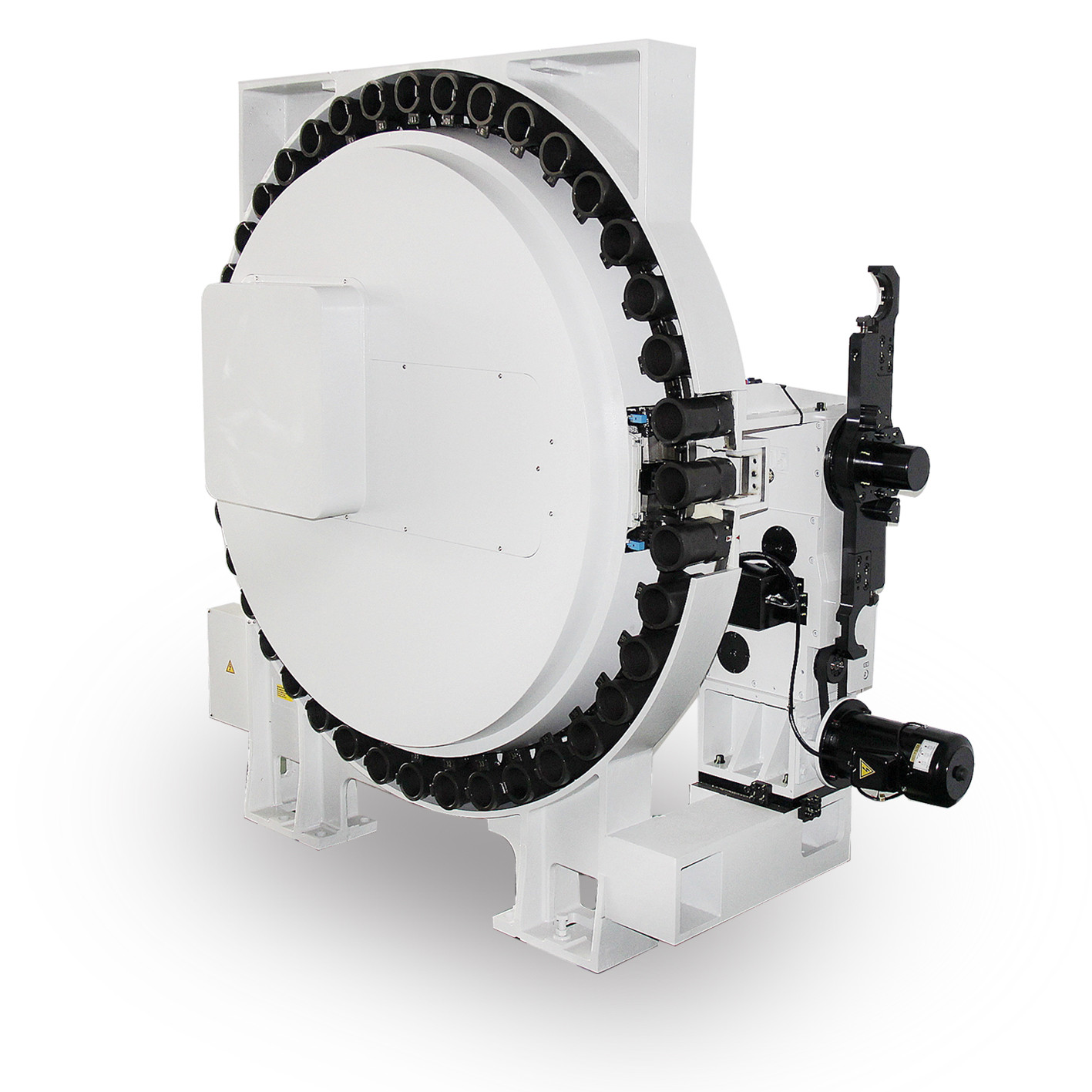

Adopted MACO designed and produced tool changer which features fast, simple, reliable and long-life.
Specially aluminum alloy tool pocket designed with advanced cam type drive mechanism and spared tool function.






Selected large diameter (Ø 50mm) ball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the affect of the thermal expansion to maintain the accuracy of operation.






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.

Product Name
Unit
MH-400A
TRAVEL
X-Axis Travel
mm
650
Y-Axis Travel
mm
500
Z-Axis Travel
mm
500
Spindle Center to Table Face
mm
100~600
Spindle Nose to Table Center
mm
100
SPINDLE
Spindle Speed
rpm
10,000
Spindle Transmission
Direct Drive
Spindle Taper
BT-40
Spindle Power
kw
11 / 15
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
50 / 50 / 50
TABLE
Table Size
mm
400 x 400
T-slot ( W x No.x Pitch)
mm
Table Screw
mm
24-M12 x 1.75P
Table Loading Capacity
kg
400
Table Indexing
0.001°
Max. Workpiece Dimensions
mm
630 x 500
Height from Table Surface to Ground
mm
1,050
APC Time
sec
ATC
Type of ATC
Arm Type
Number of tools
pcs
40
Max.Tool Length
mm
350
Max. Tool Weight
kg
8
Max. Tool Diameter
mm
76 / 150
ATC Changing Time
sec
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
3,900 x 3,660 x 2,870
Machine Weight
kg
11,200
Power Requirement
KVA
35
Air Pressure
kg/cm²
6
