MX-4
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y,Z Travel
4,000 / 600(900) / 600(900) mm
Table Size
4,200 x 600(900) mm





The

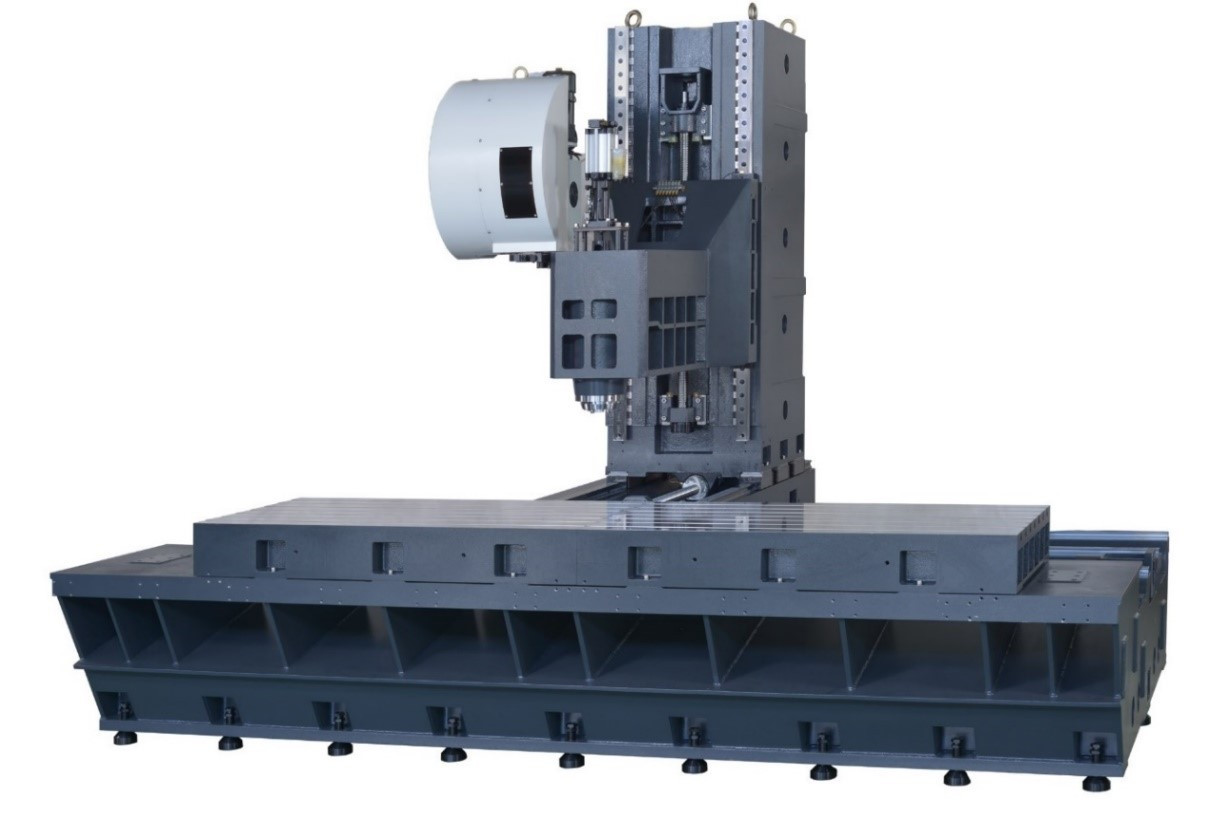

MX series is a new generation of vertical moving-column machining centers by MACO. The fixed machine table design allows heavy workpieces up to 3,000~6,000 kg with no effect on the cutting dynamics. MX series is impressive for its excellent long-term stability, superlative accuracy, and exemplary ergonomics.

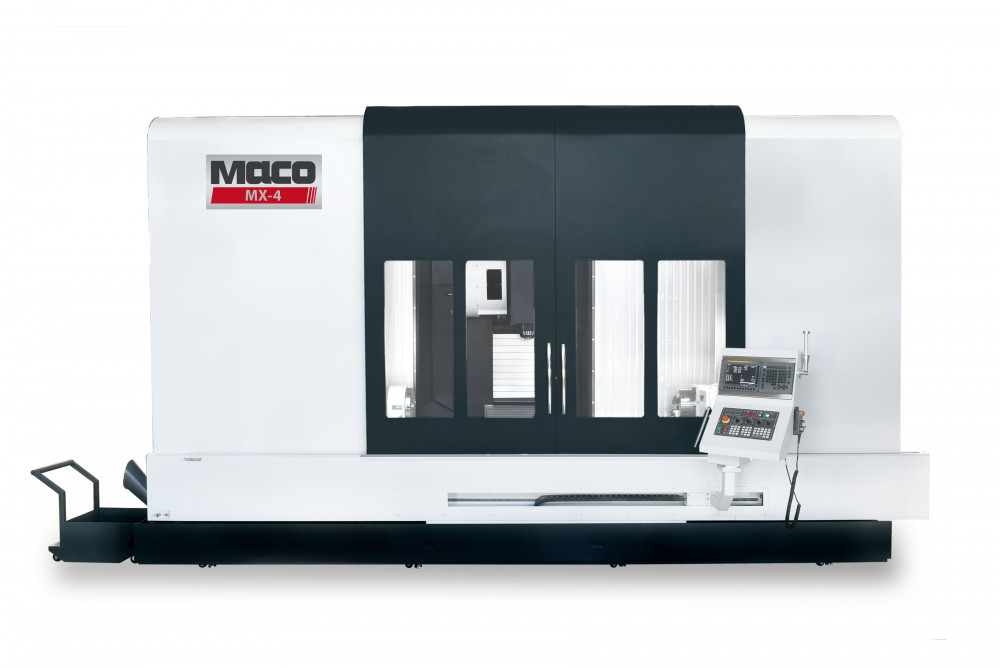

MACO CNC MX-4

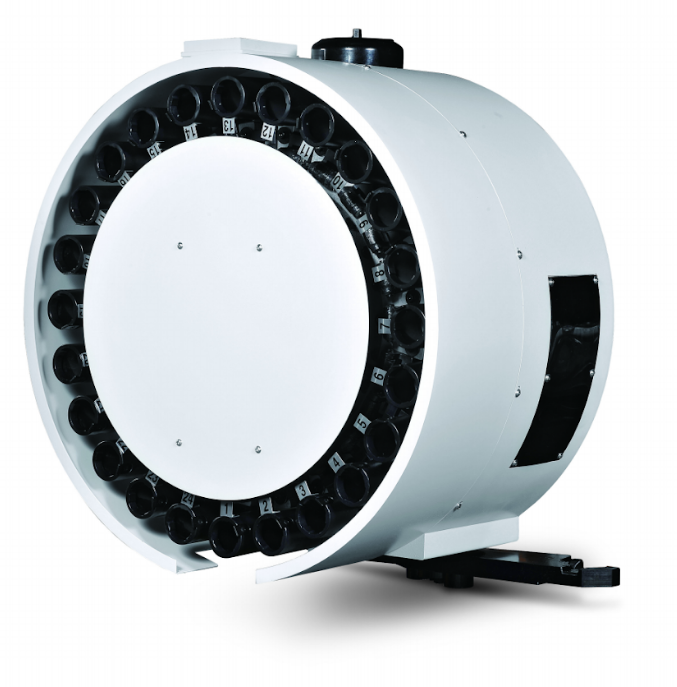

For over twenty years of tool magazine producer, the MX series is equipped with MACO self-produced automatic tool changer for quality assurance.

The unique aluminum tool pocket design extends the life of the tool magazine. The advanced cam drive mechanism with the free-selection function of the tool is unique in the industry.
MACO CNC Tool Magazine

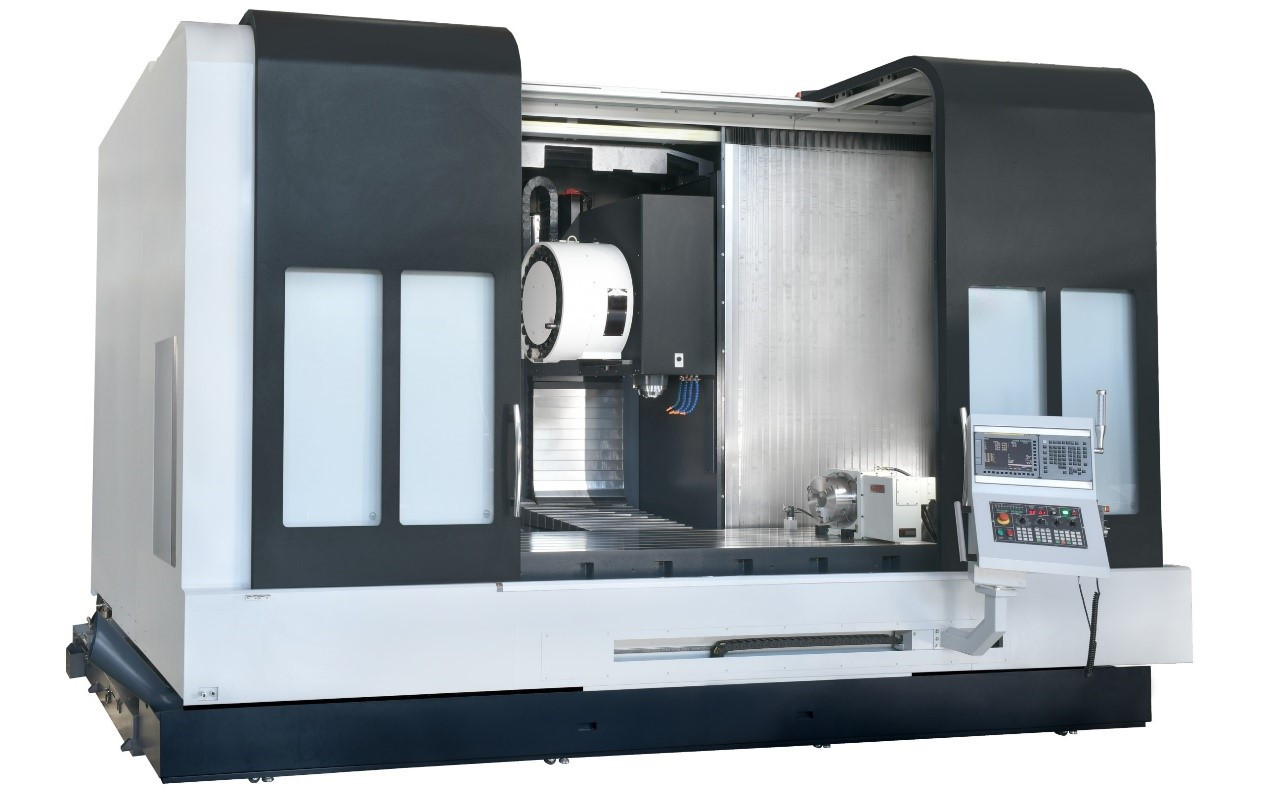

The MX series offers a variety of splash guarding design and options. The MX may be customized according to customer requirements and provide the most suitable machine for your application.

MACO CNC Splash Guard

The MX series offers a variety of splash guarding design and options. The MX may be customized according to customer requirements and provide the most suitable machine for your application.

MACO CNC Splash Guard
Product Name
Unit
MX-4
TRAVEL
X-Axis Travel
mm
4,000
Y-Axis Travel
mm
600(900)
Z-Axis Travel
mm
600(900)
Spindle Nose to Table Center
mm
130~730
SPINDLE
Spindle Speed
rpm
10,000
Spindle Transmission
Belt Driven
Spindle Taper
BT-40
Spindle Power
kw
11 / 15
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
24 / 30 / 30
TABLE
Table Size
mm
4,200 x 600(900)
T-slot ( W x No.x Pitch)
mm
18 x 5 x 100
Table Loading Capacity
kg
4,000
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
ATC Changing Time
sec
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
7,360 x 4,070 x 3,100(3,600)
Machine Weight
kg
29,000
Power Requirement
KVA
40
Air Pressure
kg / cm²
6
