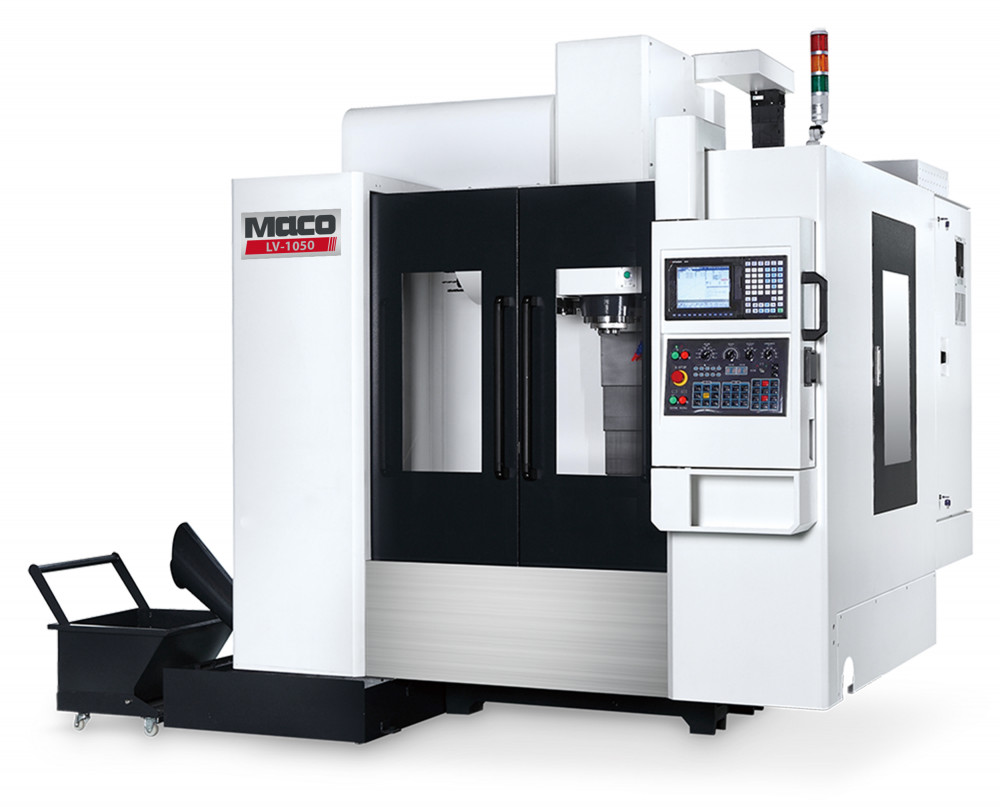

LV-1050 by MACO
LV-1050 by MACO
LV-1050
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y,Z Travel
1,000 x 500 x 550 mm
Table Size
1,100 x 550 mm

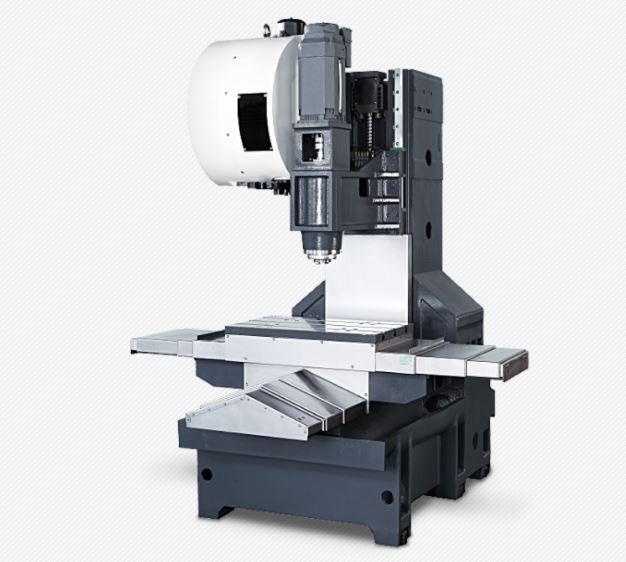

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

MACO CNC LV-1050

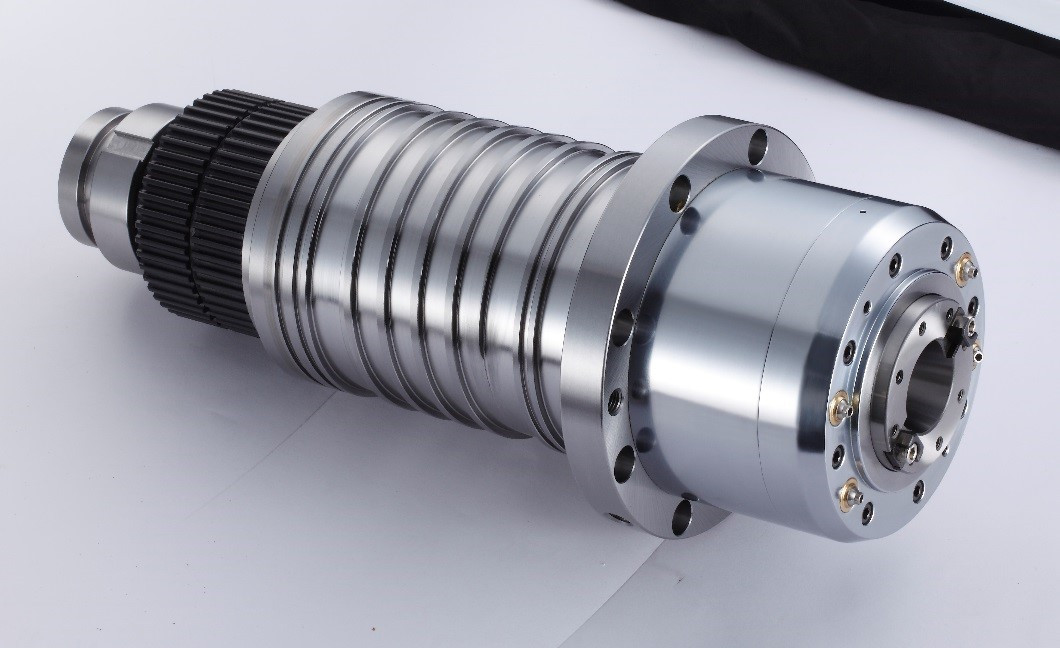

The belt-drive spindle  wtih short nose designed presents outstanding rigidity. It may also increase efficiency as well as lower tool wear.
MACO CNC Spindle





With BT-40 and 24 tools ATC, customers can choose a servo motor system would be an option. The tool changer features high speed, the change time is only 1.5 seconds which can reduce non-cutting time and increase production efficiency.
MACO CNC Tool Magazine





Large diameter ball screw, design of return unit can absorb the reduce the sound which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.

HIWIN Ball Screw





Large diameter ball screw, design of return unit can absorb the reduce the sound which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.

HIWIN LV-1050 Linear Guideway

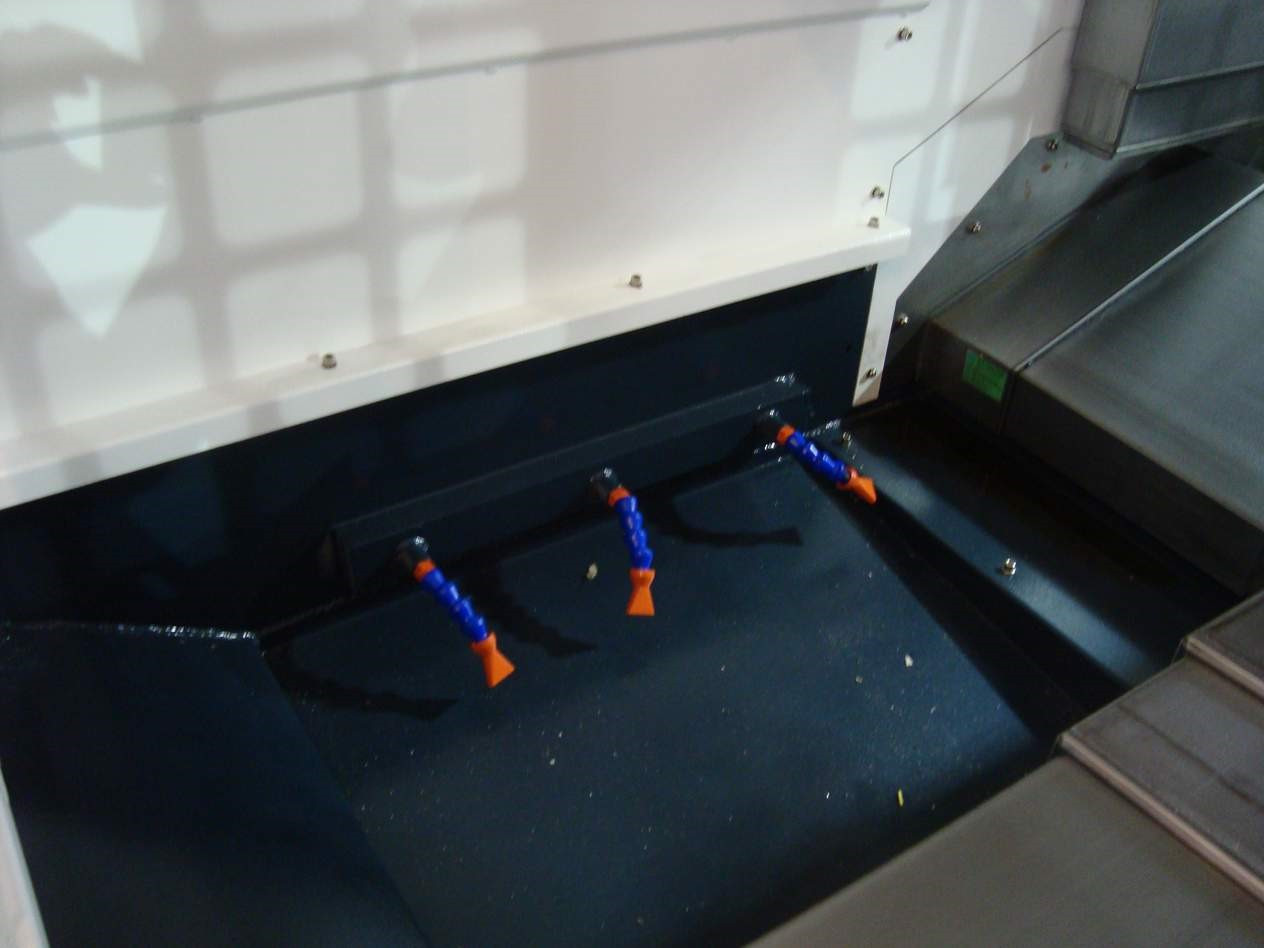

The front side chip removing design with optimal chip removing angle and large flow chip flushing system.

MACO CNC Chip conveyor
Product Name
Unit
LV-1050
TRAVEL
X-Axis Travel
mm
1,000
Y-Axis Travel
mm
500
Z-Axis Travel
mm
500
Spindle Nose to Table Center
mm
120~670
SPINDLE
Spindle Speed
rpm
10,000
Spindle Transmission
Belt Drive
Spindle Taper
BBT-40
Spindle Power
kw
7.5 / 11
FEEDRATE
Cutting Feedrate
mm/min
X/Y/Z Rapid Feedrate
m/min
36 / 36 / 36
TABLE
Table Size
mm
1,100 x 550
T-slot ( W x No.x Pitch)
mm
18 x 5 x 80
Table Loading Capacity
kg
600
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
ATC Changing Time
sec
1.5
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
2,730 x 2,400 x 2,700
Machine Weight
kg
5,000
Power Requirement
KVA
Air Pressure
kg / cm²
6
