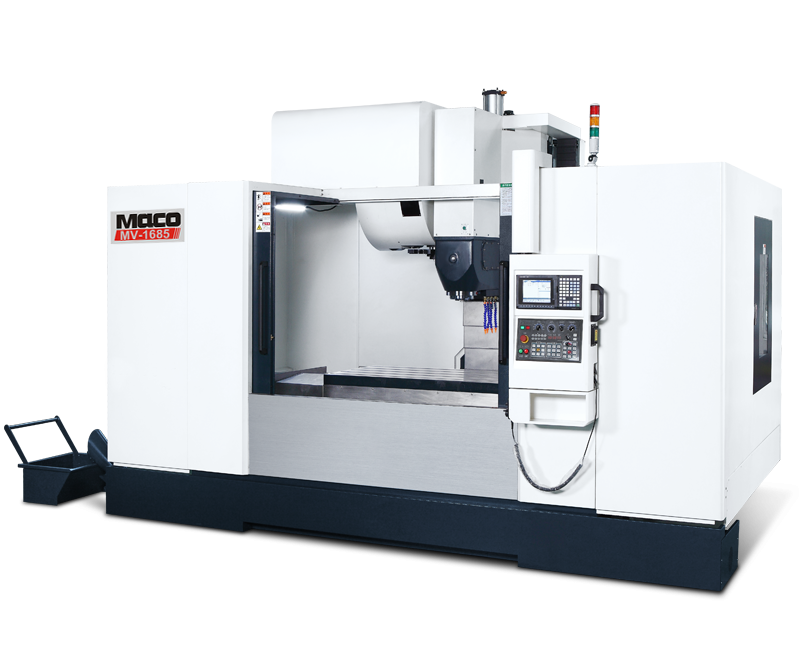

MV-1685 (Box Way)
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y,Z Travel
1,600 / 850 / 850 mm
Table Size
1,700 x 800 mm

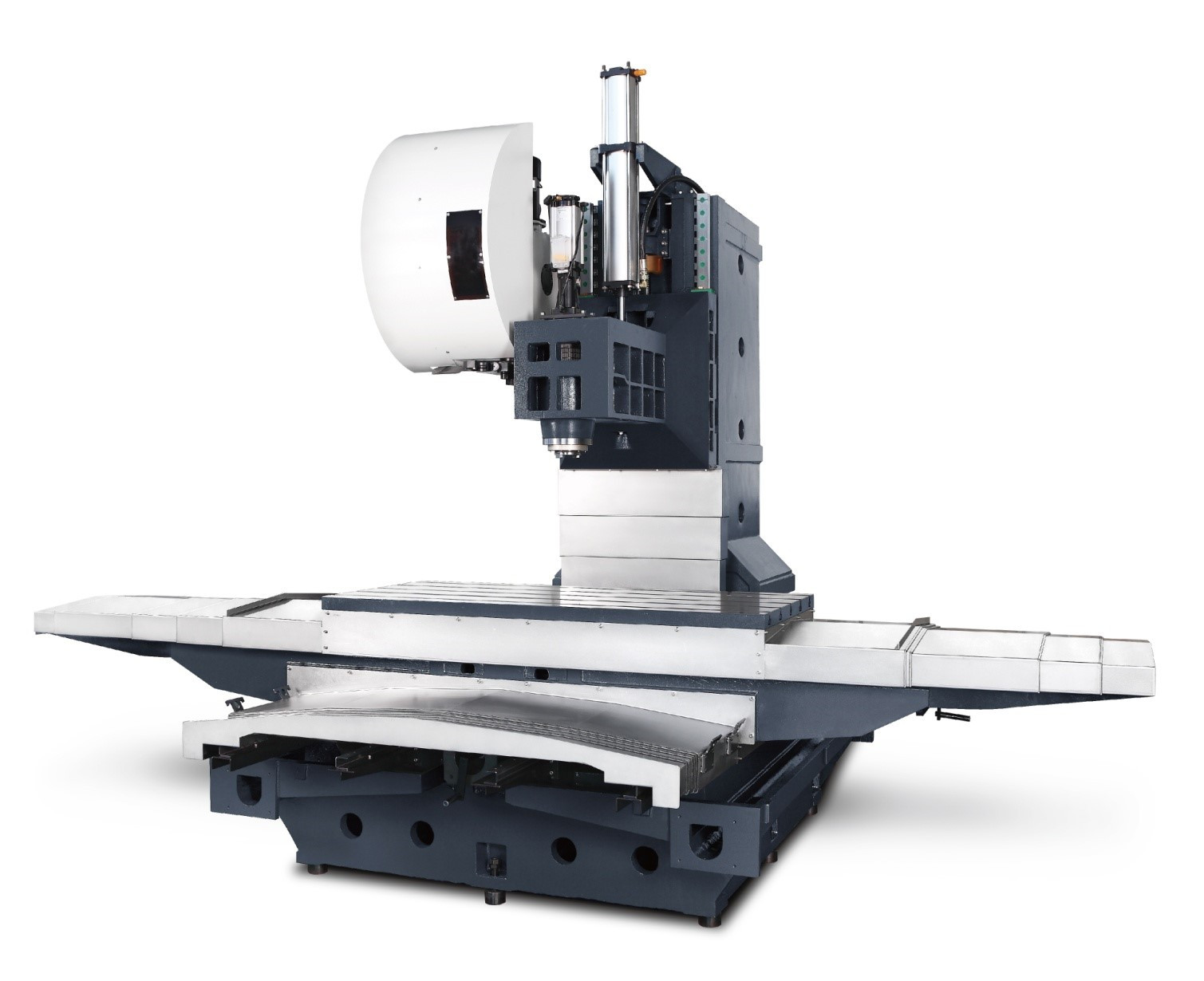

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.



MACO CNC MV-1685

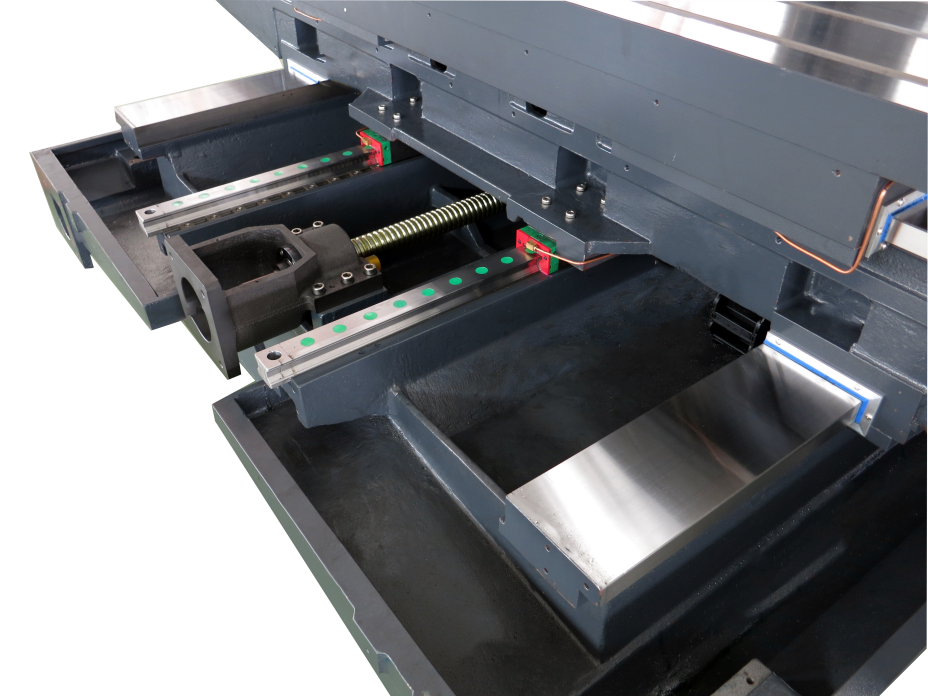

The MV-1685 is a combination of two wide box way and two roller guideways.



MACO CNC Box way





The large diameter ball screw, design of the returned unit can reduce the sound which comes from steel balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.



HIWIN Ball Screw






With BT-50 and 24 tools ATC, customers can choose a servo motor system would be an option. The tool changer features high speed, the change time is only 3.0 seconds which can reduce non-cutting time and increase production efficiency.



MACO CNC Tool Magazine





Z-axis has a pneumatic counter-balance system to reduce the extra weight carry by the Z servo motor.

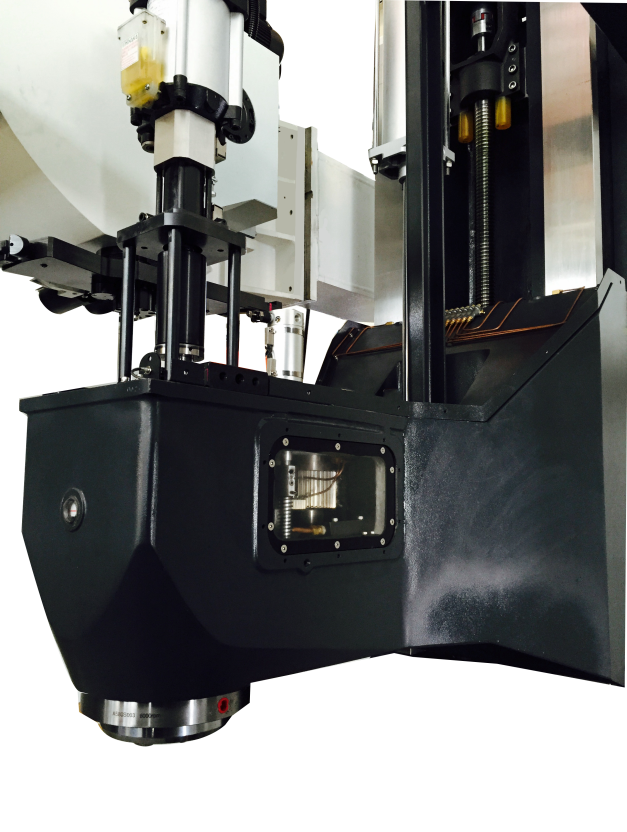

Heavy-Duty Gear Head design for heavy cutting.

MACO CNC MV-1685 Gear Head

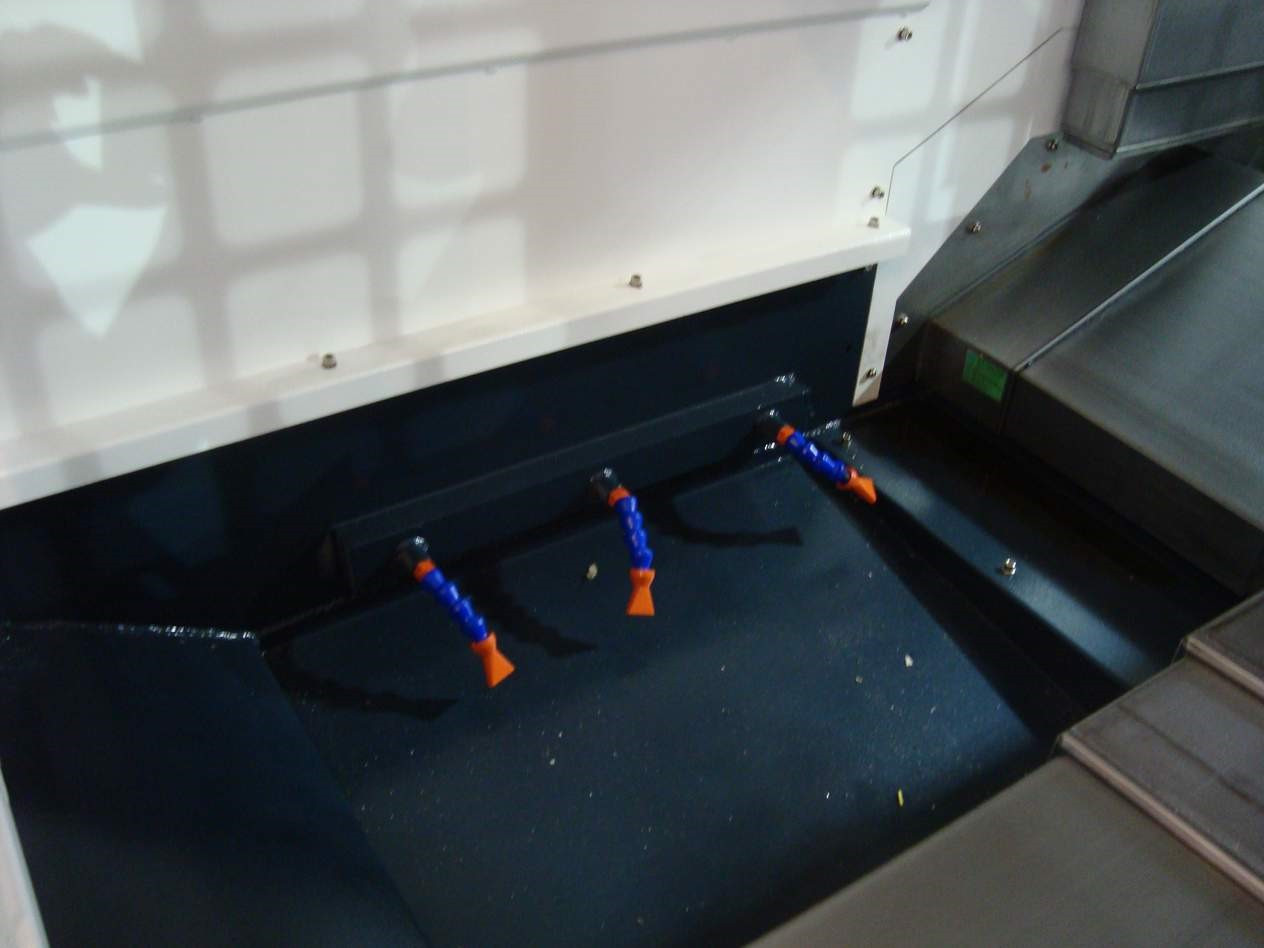

The screw-type chip conveyor adopted a front side chip removing design with optimal chip removing angle and large flow chip flushing system.



MACO CNC Chip conveyor
Product Name
Unit
MV-1685 (Box Way)
TRAVEL
X-Axis Travel
mm
1,600
Y-Axis Travel
mm
850
Z-Axis Travel
mm
800
Spindle Nose to Table Center
mm
150~950
SPINDLE
Spindle Speed
rpm
6,000
Spindle Transmission
Gear Drive
Spindle Taper
BT-50
Spindle Power
kw
15 / 18.5
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
20 / 20 / 15
TABLE
Table Size
mm
1,700 x 800
T-slot ( W x No.x Pitch)
mm
22 x 5 x 160
Table Loading Capacity
kg
2,000
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
ATC Changing Time
sec
3.0
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
4,550 x 4,000 x 4,000
Machine Weight
kg
11,450
Power Requirement
KVA
35
Air Pressure
kg / cm²
6
