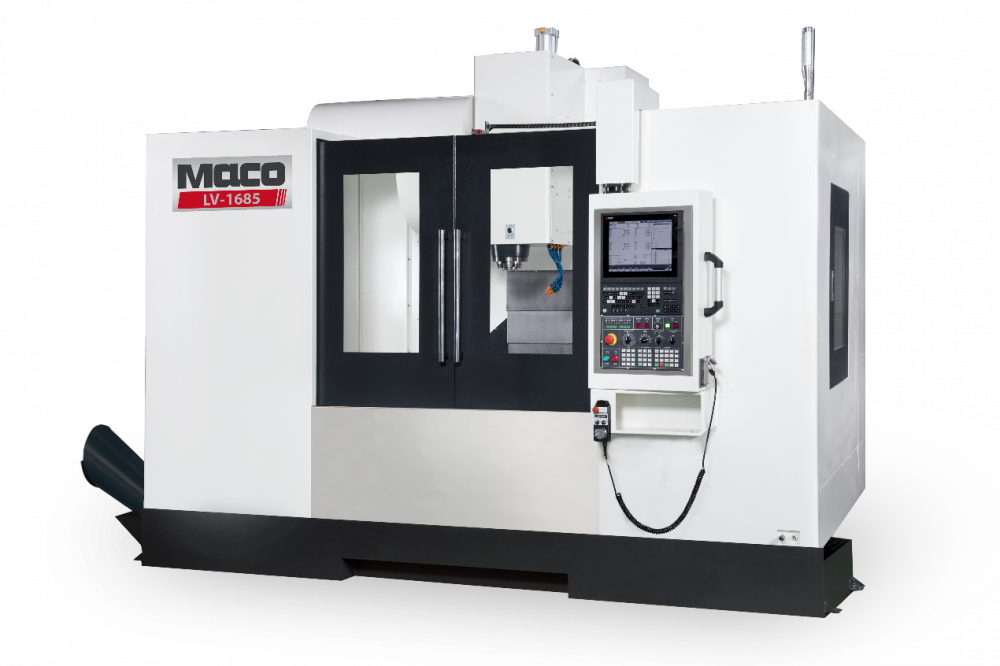

LV-1685
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y,Z Travel
1,600 / 850 / 800 mm
Table Size
1,700 x 800 mm

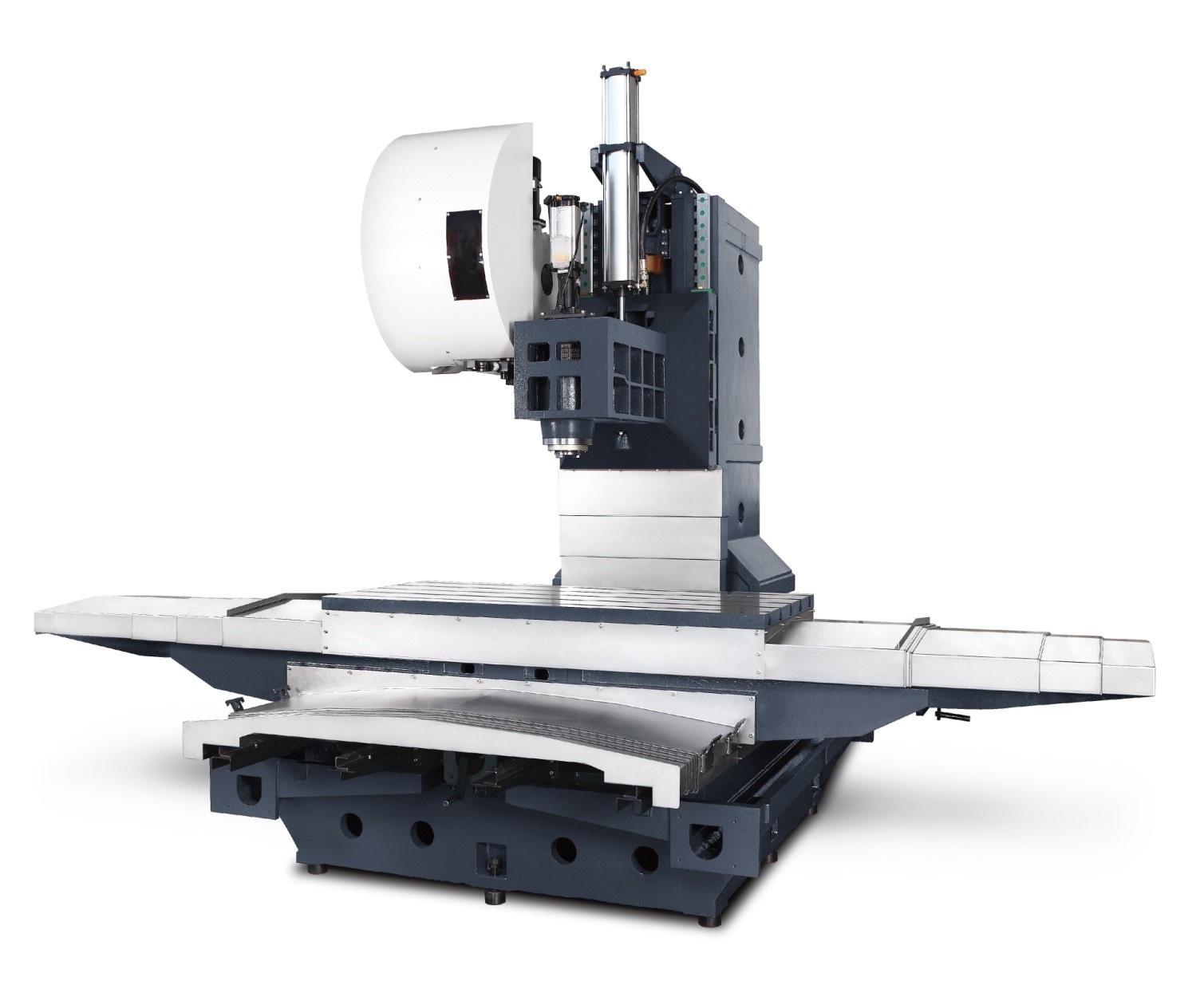

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

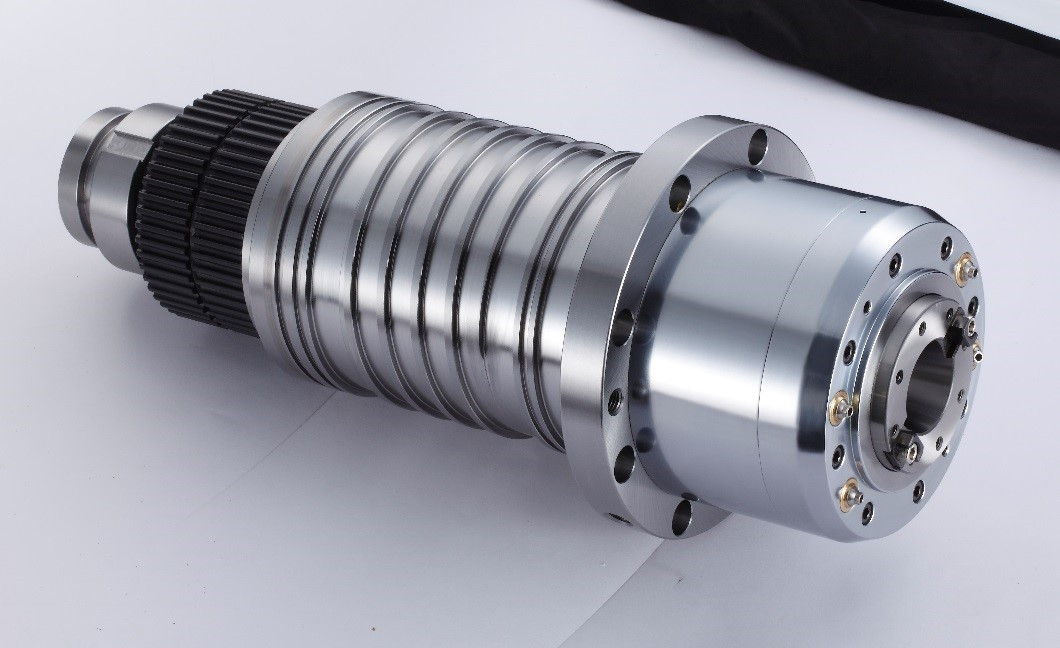

Imported belt-drive spindle with high rigid which available to enhance the efficiency of various parts machining.





Z-axis has a pneumatic counter-balance system to reduce the extra weight carry by the Z servo motor.









With BT-40 (option BT50) and 24 tools ATC, customers can choose a servo motor system would be an option. The tool changer features high speed, the change time is only 3.0 seconds which can reduce non-cutting time and increase production efficiency.






Large diameter ball screw, design of return unit can reduce the sound which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high-speed movement and dramatically reduce the power requirement of the machine.

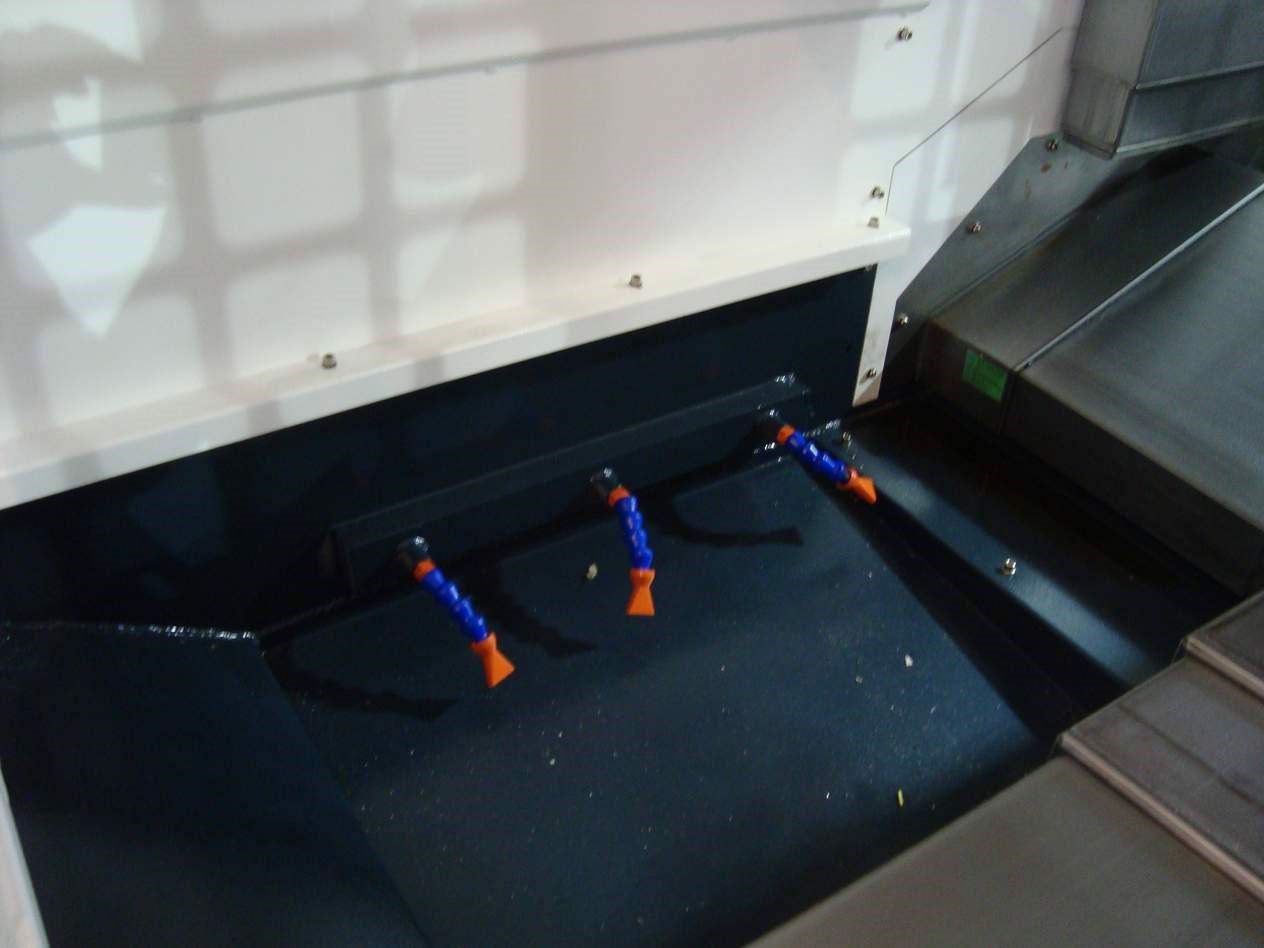

The front side chip removing design with optimal chip removing angle and large flow chip flushing system.

Product Name
Unit
LV-1685
TRAVEL
X-Axis Travel
mm
1,600
Y-Axis Travel
mm
850
Z-Axis Travel
mm
800
Spindle Nose to Table Center
mm
150~950
SPINDLE
Spindle Speed
rpm
10,000
Spindle Transmission
Belt Drive
Spindle Taper
BT-40
Spindle Power
kw
11 / 15
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
32 / 32 / 30
TABLE
Table Size
mm
1,700 x 800
T-slot ( W x No.x Pitch)
mm
22 x 5 x 160
Table Loading Capacity
kg
2,000
ATC
Type of ATC
Arm Type
Number of tools
pcs
24
ATC Changing Time
sec
3.0
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
4,550 x 4,000 x 4,000
Machine Weight
kg
11,450
Power Requirement
KVA
35
Air Pressure
kg / cm²
6
