V-5F
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y,Z Travel
500 / 400 / 450 mm
Table Size
620 x 420 mm

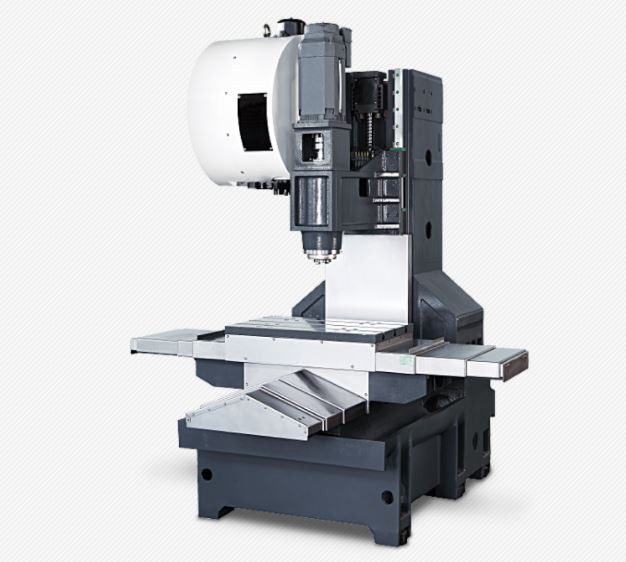

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

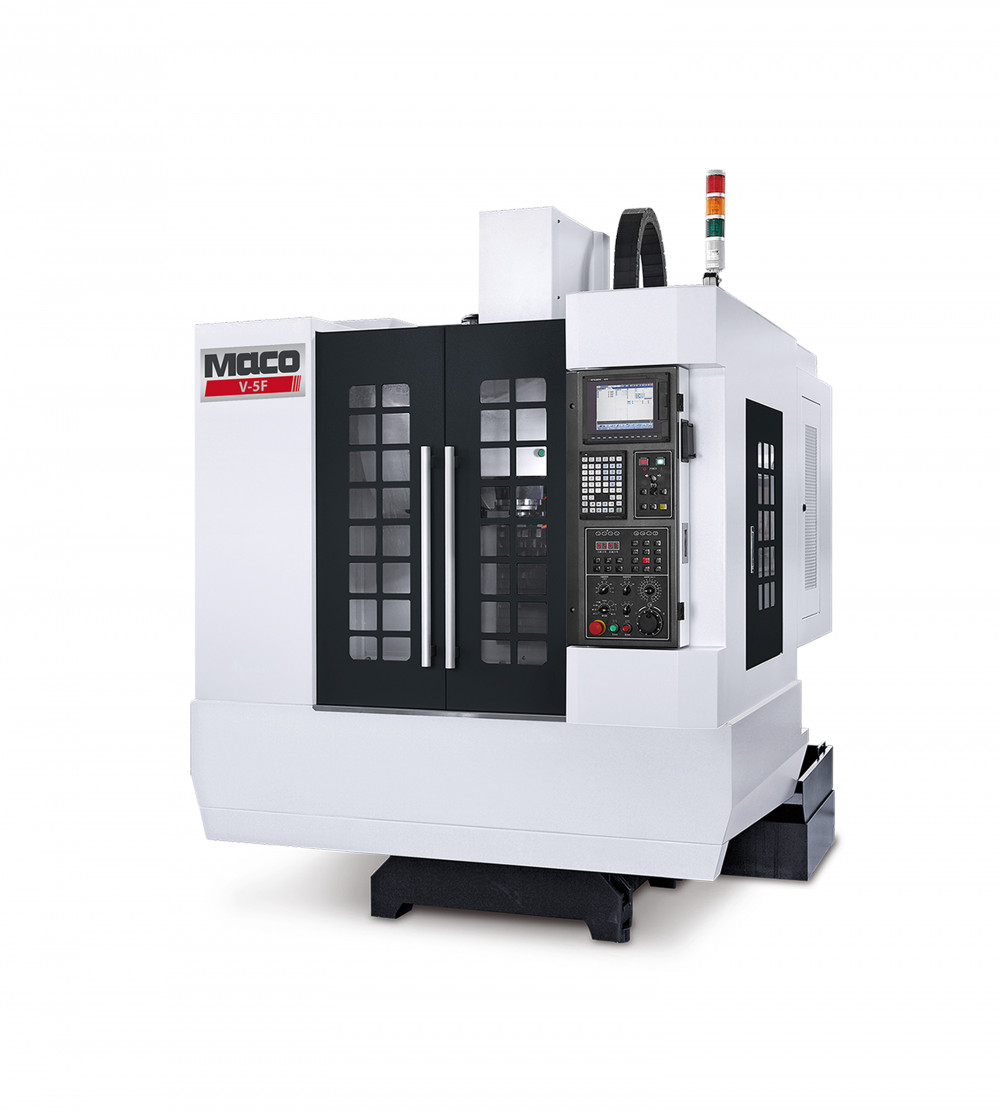

MACO CNC V-5F

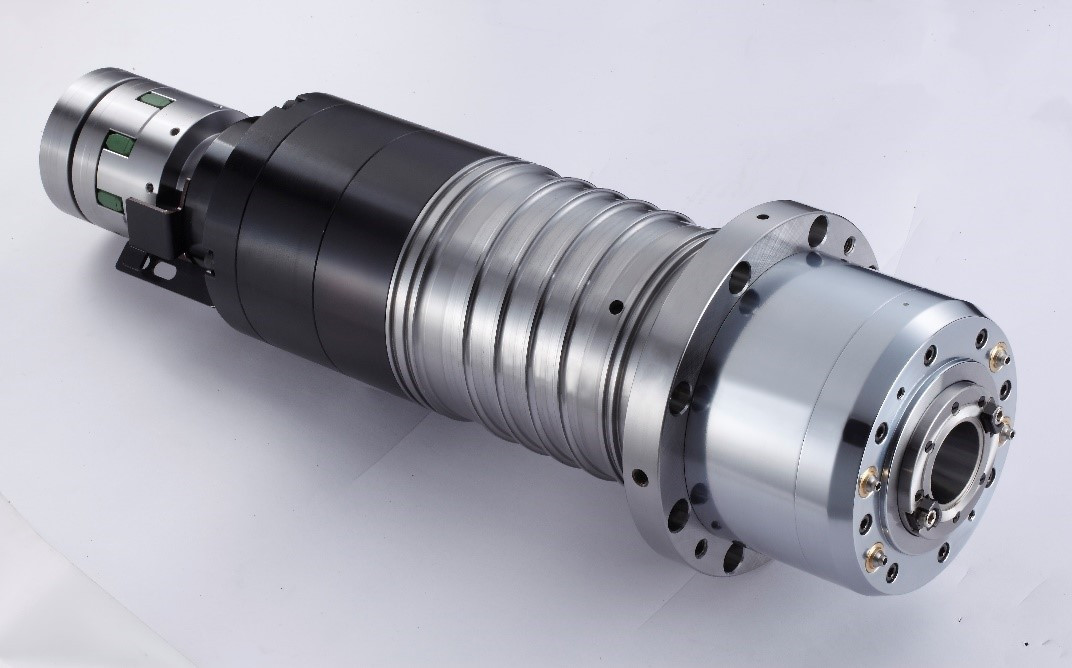

Steel ball bearing designed with high rigidity, high precision. When high speed processing, the spindle has low centrifugal force and low expansion coefficient that can achieve optimal accuracy and life span.

MACO CNC Spindle






With tool shank BT-30 and 20 tools ATC, customers can choose a servo motor system would be an option. The tool changer features high speed, the change time is only 1.2 seconds which can reduce non-cutting time and increase production efficiency.



MACO CNC Tool Magazine






Selected large diameter (Ø 32mmball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.



HIWIN Ball Screw






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high-speed movement and dramatically reduce the power requirement of the machine.



HIWIN V-5F Linear Guideway

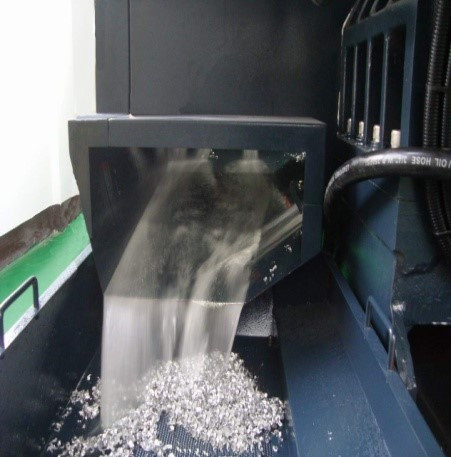

The back flushing design with optimal chip removing angle and a large flow chip flushing system.



MACO CNC Chip conveyor
Product Name
Unit
V-5F
TRAVEL
X-Axis Travel
mm
500
Y-Axis Travel
mm
400
Z-Axis Travel
mm
450
Spindle Nose to Table Center
mm
200~650
SPINDLE
Spindle Speed
rpm
12,000
Spindle Transmission
Direct Drive
Spindle Taper
BT-30
Spindle Power
kw
3.5 / 5.5
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
48 / 48 / 48
TABLE
Table Size
mm
620 x 420
T-slot ( W x No.x Pitch)
mm
18 x 3 x 125
Table Loading Capacity
kg
250
ATC
Type of ATC
Arm Type
Number of tools
pcs
20
ATC Changing Time
sec
1.2
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
1,600 x 2,080 x 2,815
Machine Weight
kg
3,200
Power Requirement
KVA
15
Air Pressure
kg / cm²
6
