V-6
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X.Y.Z Travel
600 / 400 / 450 mm
Table Size
700 x 420 mm

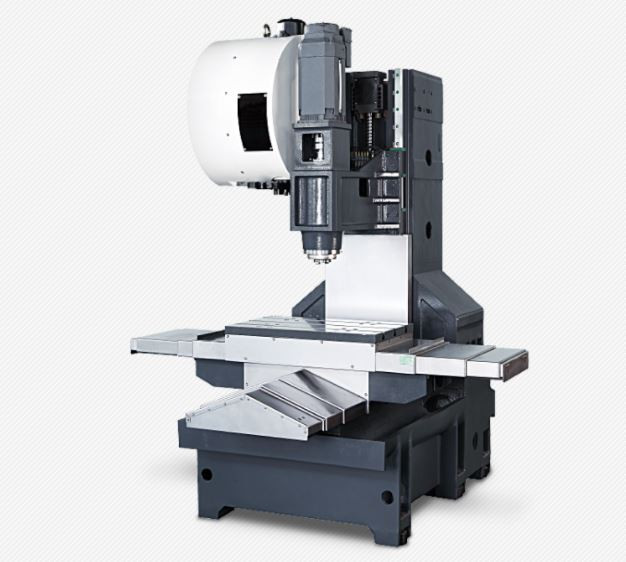

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

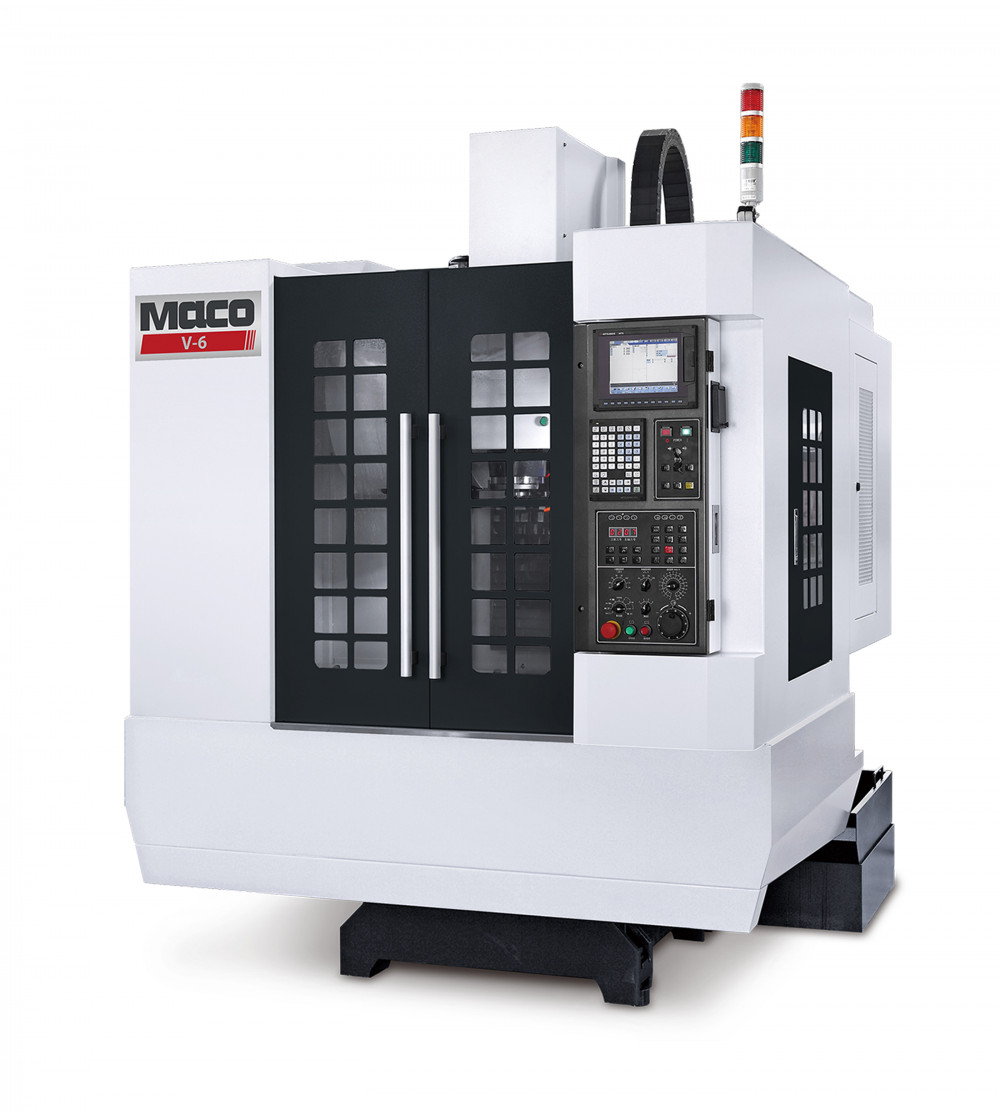

MACO CNC V-6

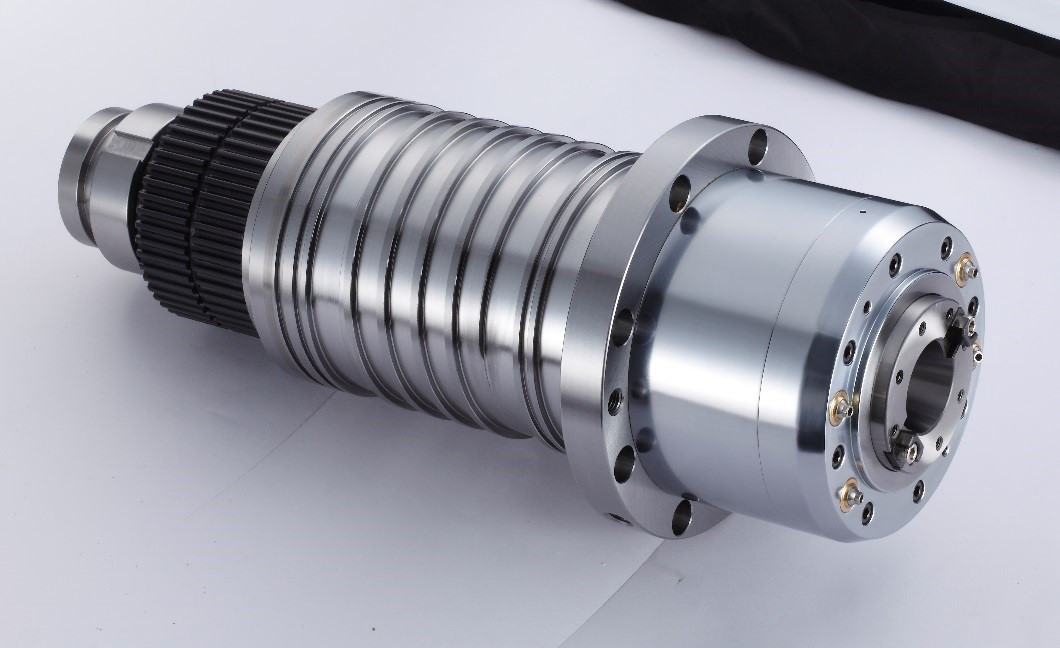

Imported belt-drive spindle with high rigid which available to enhance the efficiency of various parts machining.

MACO CNC Spindle






With tool shank BT-40 and 20 tools ATC, customers can choose a servo motor system would be an option. The tool changer features high speed, the change time is only 1.8 seconds which can reduce non-cutting time and increase production efficiency.



MACO CNC Tool Magazine






Selected large diameter (Ø 32mmball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.



HIWIN Ball Screw






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high-speed movement and dramatically reduce the power requirement of the machine.

HIWIN V-6  Linear Guideway

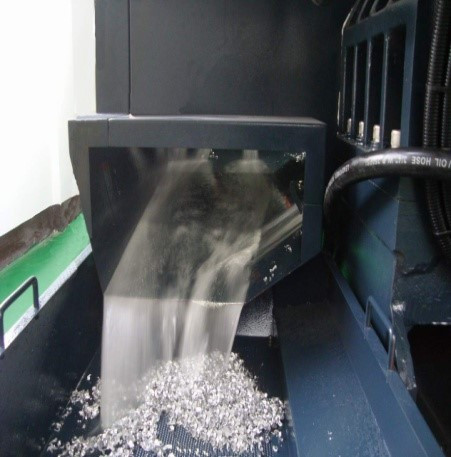

The back flushing design with optimal chip removing angle and a large flow chip flushing system.

MACO CNC Chip conveyor
Product Name
Unit
V-6
TRAVEL
X-Axis Travel
mm
600
Y-Axis Travel
mm
400
Spindle Nose to Table Center
mm
120~620
SPINDLE
Spindle Speed
rpm
10,000
Spindle Transmission
Belt Drive
Spindle Taper
BT-40
Spindle Power
kw
3.5 / 5.5
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
48 / 48 / 48
TABLE
Table Size
mm
700 x 420
T-slot ( W x No.x Pitch)
mm
18 x 3 x 125
Table Loading Capacity
kg
300
ATC
Type of ATC
Arm Type
Number of tools
pcs
20
ATC Changing Time
sec
1.8
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
1,600 x 2,080 x 2,815
Machine Weight
kg
3300
Power Requirement
KVA
15
Air Pressure
kg / cm²
6
