UF6 by MACO
UF6 by MACO

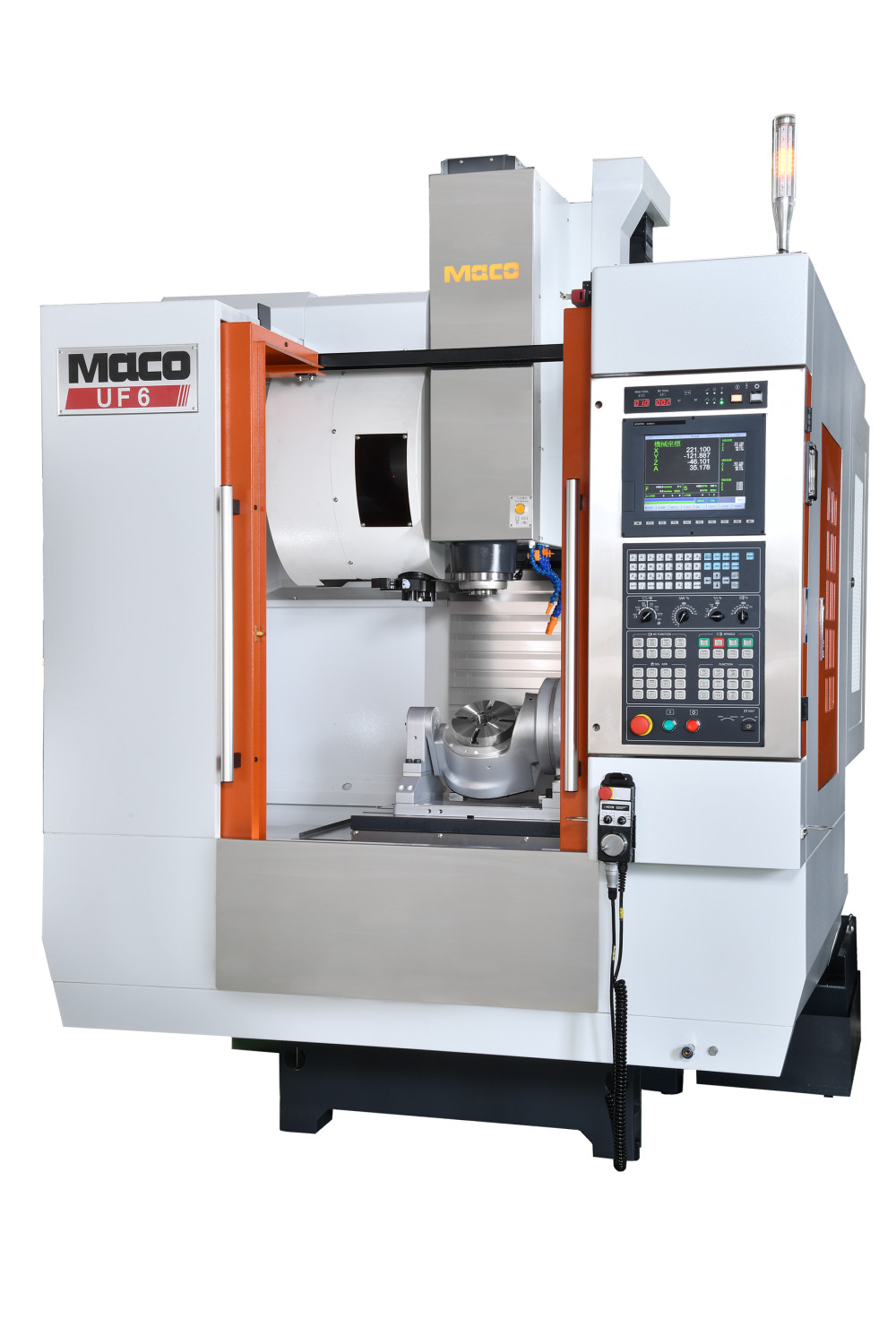

UF6
Controller Units
SYNTEC 220MA-5
X,Y,Z Travel
600 / 400 / 450 mm
Table Size
Ø170 mm

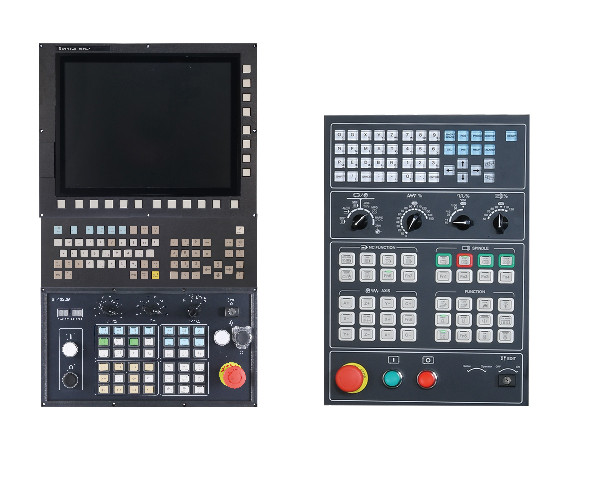

SYNTEC Controller 220MA-5
Standard  with rotation tool center point (RTCP), the orientation of tool adjustment and rotary axis auxiliary brake function....and so on.
Other controller brands can be indicated.

SYNTEC新代控制器





With tool shank BBT-40 and 20 tools ATC, customer can choice servo motor system would be option. The tool changer features high speed, the change times is only 1.8 seconds which can reduce non-cutting time and increase production efficiency.
MACO CNC Tool Magazine

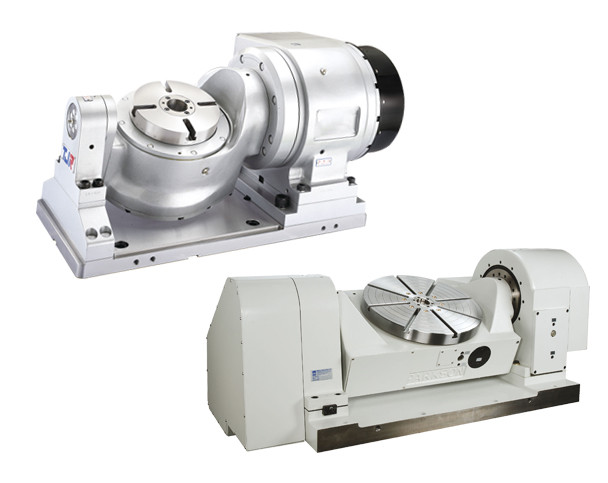

Taiwan 4/5-Axis Rotary Table
Use dual direct-drive motor, the standard table size is φ170mm.
Min. indexing 0.001 degree.The worm gear type 5-axis rotary table
is acceptable.










MACO CNC Rotary Table





Selected large diameter (Ø 32mm）ball screw, design of return unit can absorbs the voice which comes from steels balls' impact, then greatly reduce the noise. Through auto-lubricating system can remove the affects of the thermal expansion to maintain the accuracy of operation.
HIWIN Ball Screw





The ball type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.
HIWIN UF5 Linear Guideway
Product Name
Unit
UF6
TRAVEL
X-Axis Travel
mm
600
Y-Axis Travel
mm
400
Z-Axis Travel
mm
450
A-Axis Tilting Range
degree
+30° ~-110°
C-Axis Rotating Range
degree
360°
Spindle Nose to Table Center
mm
0~320
SPINDLE
Spindle Speed
mm
20000
Spindle Transmission
Direct Drive
Spindle Taper
BBT-40
Spindle Power
kw
5.5 / 7.5
FEEDRATE
Cutting Feedrate
mm/mm
1~10,000
X/Y/Z Rapid Feedrate
m/min
48/48/48
TABLE
Table Size
mm
Ø170
Table Loading Capacity
kg
50 / 30 (Horizontal / Tilting)
Table Indexing
degree
0.001°
ATC
Type of ATC
Arm Type
Number of tools
Sec
20
Max.Tool Length
mm
250
Max. Tool Weight
kg
4
ATC Changing Time
Sec
1.8
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
2,350x1,850x2,590
Machine Weight
kg
3450
Power Requirement
KVA
15
Air Pressure
kg / cm²
6
