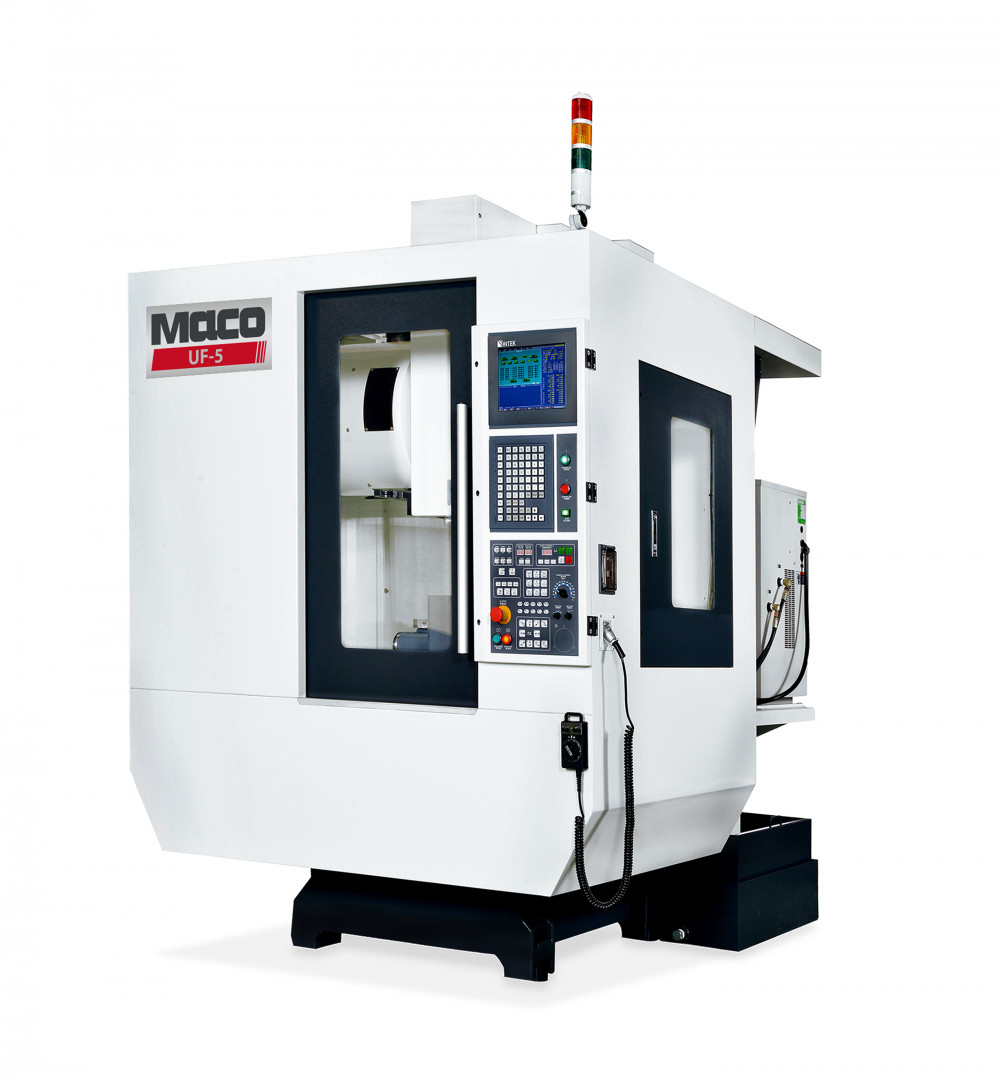

UF-5

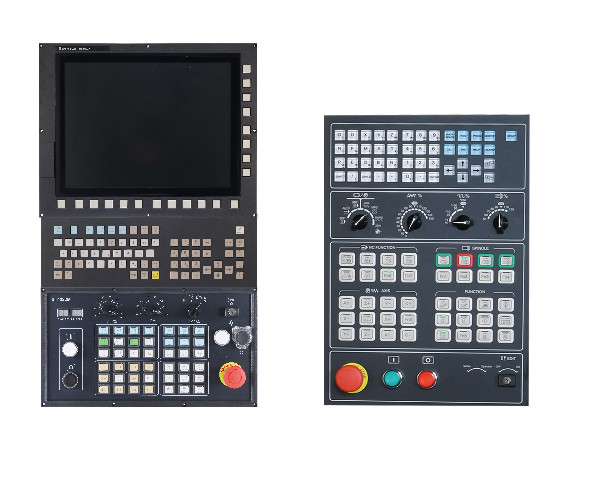

Controller Units
SIEMENS 840Dsl
X,Y,Z Travel
500 / 400 / 450 mm
Table Size
Ø170 mm

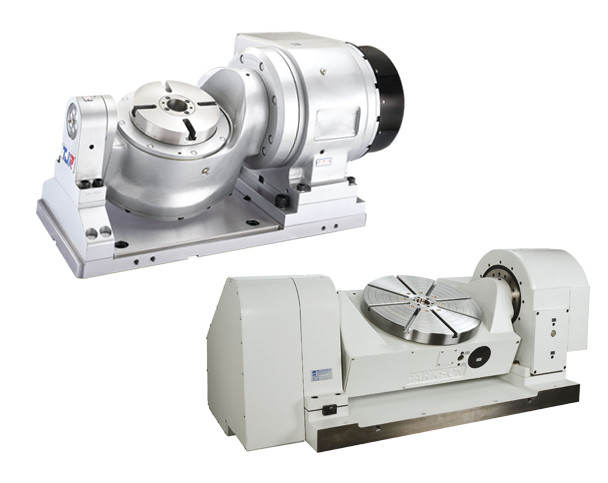

Integrated multi-face machining on the same rotary table to reduce setup work and fixture preparing, improve the cutting efficiency but reduce the total cutting time
.






With tool shank BT-30 and 20 tools ATC, customer can choice servo motor system would be option. The tool changer features high speed, the change times is only 1.2 seconds which can reduce non-cutting time and increase production efficiency.








Selected large diameter (Ø 32mm
ball screw, design of return unit can absorbs the voice which comes from steels balls' impact, then greatly reduce the noise. Through auto-lubricating system can remove the affects of the thermal expansion to maintain the accuracy of operation.






The roller type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.

Product Name
Unit
UF-5
TRAVEL
X-Axis Travel
mm
500
Y-Axis Travel
mm
400
Z-Axis Travel
mm
450
A-Axis Tilting Range
degree
+30° ~-110°
C-Axis Rotating Range
degree
360°
Spindle Nose to Table Center
mm
0~430
SPINDLE
Spindle Speed
rpm
20,000
Spindle Transmission
Direct Drive
Spindle Taper
BBT-40
Spindle Power
kw
4.8
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
48 / 48 / 48
TABLE
Table Size
mm
Ø170
T-slot ( W x No.x Pitch)
mm
18 x 3 x 125
Table Loading Capacity
kg
250
ATC
Type of ATC
Arm Type
Number of tools
sec
20
Max.Tool Length
mm
250
Max. Tool Weight
kg
4
ATC Changing Time
sec
1.2
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
1,711 x 2,120 x 2,290
Machine Weight
kg
3,200
Power Requirement
KVA
15
Air Pressure
kg / cm²
6
