T-7
Controller Units
MITSUBISHI M80A / FANUC 0iMF PLUS
X,Y, Z Travel
700 / 400 / 300 mm
Table Size
800 x 420 mm

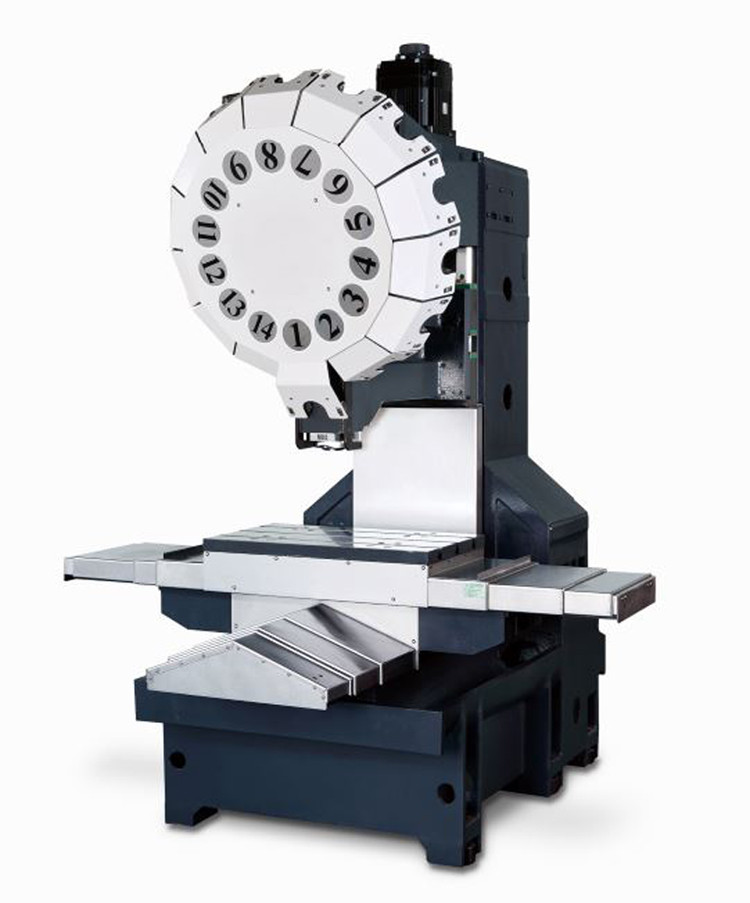

Designed with an A-line ribbing structure which can increase shock absorption effect. The casting adopted cabinet design and the inside strengthened rib has high resistance bending stiffness which can bear when starting high G movement. The structure with Meehanite cast iron, make sure high rigidity and persistence accuracy.

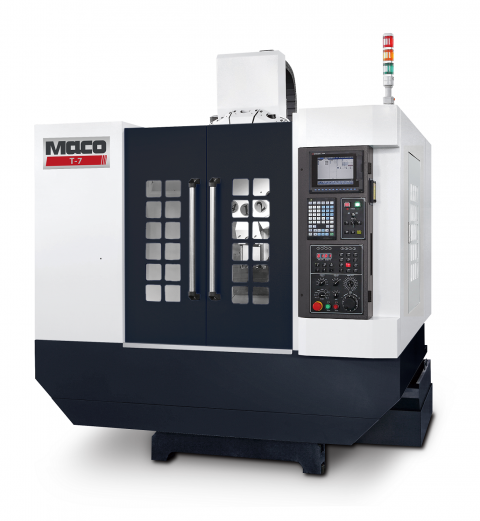

MACO CNC T-7

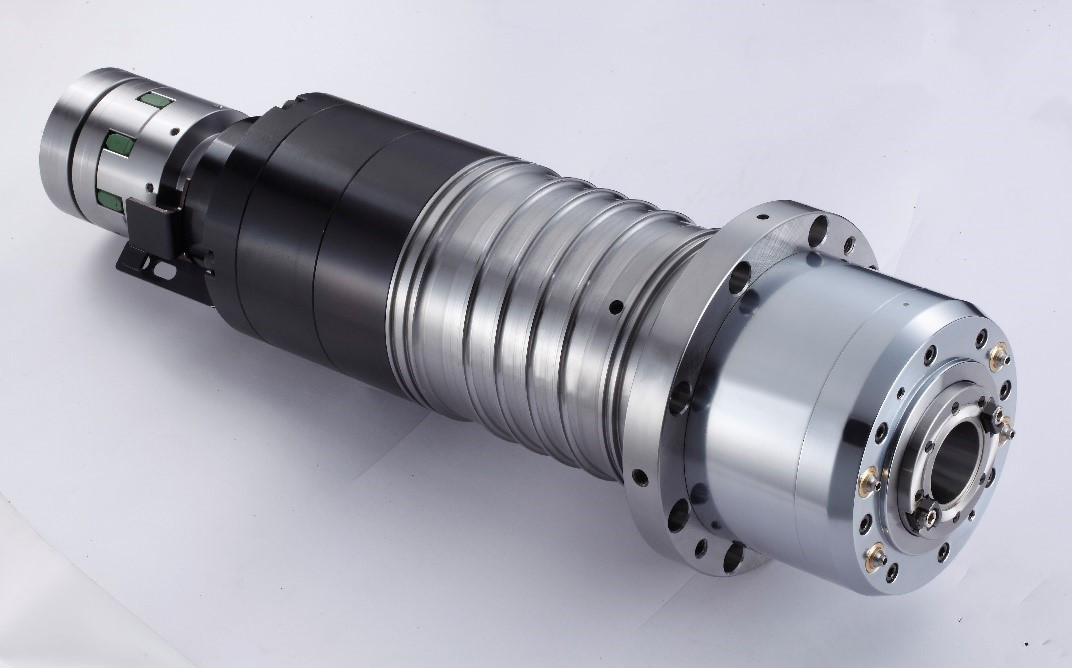

Steel ball-bearing designed with high rigidity, high precision. When high-speed processing, the spindle has a low centrifugal force and low expansion coefficient that can achieve optimal accuracy and life span.

MACO CNC Spindle

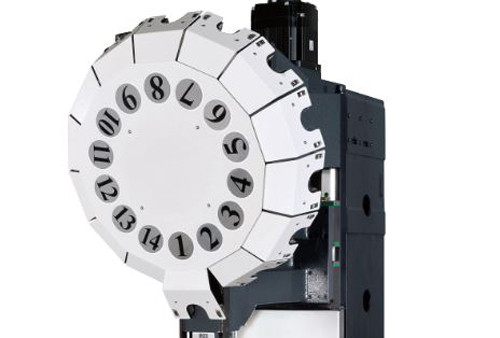

With tool shank BT-30 and 14 tools ATC, customers can choose a servo motor system that would be an option. The tool changer features high speed, the change times are only 0.8 seconds which can reduce non-cutting time and increase production efficiency.

MACO CNC Tool Magazine





Selected large diameter (Ø 32mmball screw, design of return unit can absorb the voice which comes from steels balls’ impact, then greatly reduce the noise. Through auto-lubricating system can remove the effect of the thermal expansion to maintain the accuracy of operation.

HIWIN Ball Screw





The ball type linear guideway provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining also features minimum wear to extend the life-span. Suitable for high speed movement and dramatically reduce the power requirement of machine.

HIWIN T-7 Linear Guideway

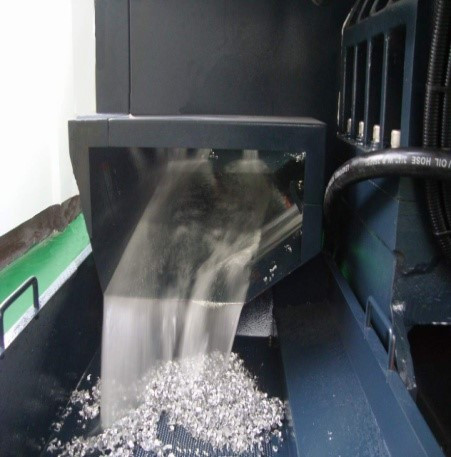

The back flushing design with optimal chip removing angle and a large flow chip flushing system.

MACO CNC Chip conveyor
Product Name
Unit
T-7
TRAVEL
X-Axis Travel
mm
700
Y-Axis Travel
mm
400
Z-Axis Travel
mm
300
Spindle Nose to Table Center
mm
200~500
SPINDLE
Spindle Speed
rpm
12,000
Spindle Transmission
Direct Drive
Spindle Taper
BT-30
Spindle Power
kw
3.7 / 5.5
FEEDRATE
Cutting Feedrate
mm/min
10,000
X/Y/Z Rapid Feedrate
m/min
48 / 48 / 48
TABLE
Table Size
mm
800 x 420
T-slot ( W x No.x Pitch)
mm
18 x 3 x 125
Table Loading Capacity
kg
300
ATC
Type of ATC
Gripper Type
Number of tools
pcs
14
ATC Changing Time
sec
0.8
MISCELLANEOUS
Machine Diamensions (L x W x H)
mm
2,000 x 2,440 x 3,100
Machine Weight
kg
3,600
Power Requirement
KVA
15
Air Pressure
kg / cm²
6
